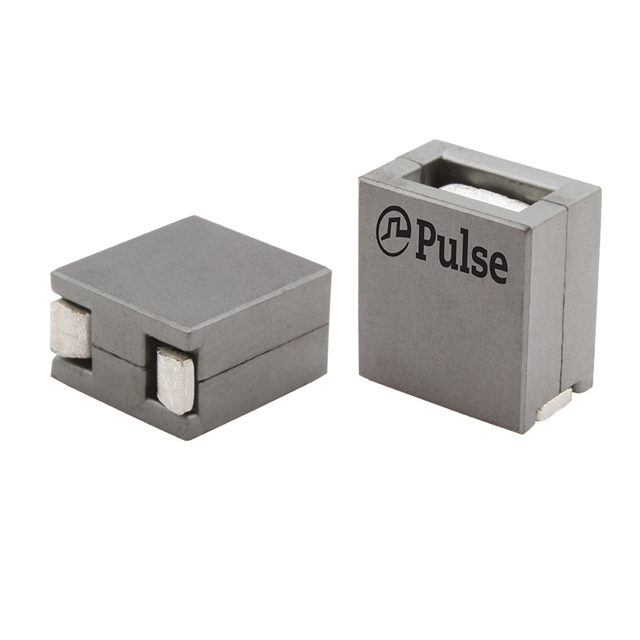

PA5034.331HLT
ActivePulse Electronics
IND PWR BEAD 330NH 40A SMD
PA5034.331HLT
ActivePulse Electronics
IND PWR BEAD 330NH 40A SMD
Description
General part information
PA5034.331HLT
330 nH Shielded Inductor 40 A 0.4mOhm Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PA5034.331HLT |
|---|---|
| Current - Saturation (Isat) | 40 A |
| Current Rating | 40 A |
| DC Resistance (DCR) | 0.4 mOhm |
| Height - Seated (Max) | 0.394 in |
| Inductance | 330 nH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.394 in |
| Size / Dimension Width | 0.276 in |
| Tolerance | 15 % |
