SCNBN-J1150-SOSPM

Active

Suntsu Electronics, Inc

CONN BNC JACK STR 50 OHM PM

Search across all available documentation for this part.

Active

Suntsu Electronics, Inc

CONN BNC JACK STR 50 OHM PM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

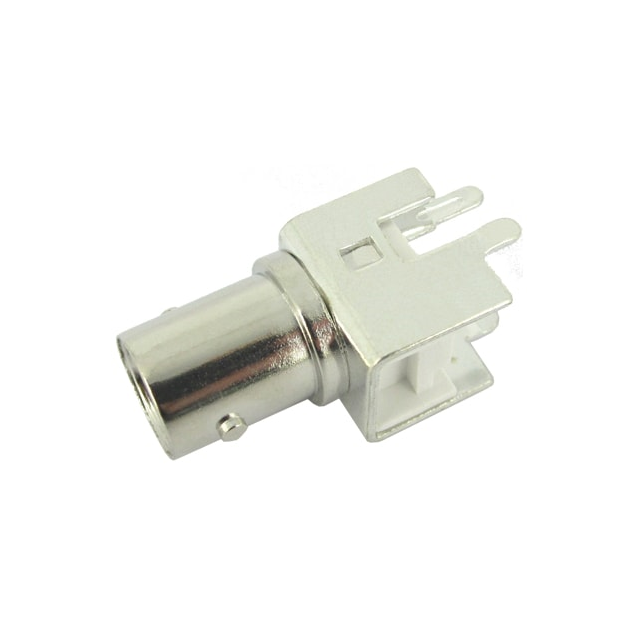

BNC Connector Jack, Female Socket 50 Ohms Panel Mount, Through Hole Solder

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	SCNBN-J1150-SOSPM	SCNBN-J1150 Series

Body Finish	Nickel	Nickel
Body Material	Zinc	Zinc
Center Contact Material	Brass	Brass
Center Contact Plating	Tin	Tin, Nickel
Connector Style	BNC	BNC
Connector Type	Female Socket, Jack	Female Socket, Jack
Contact Termination	Solder	Solder, Solder Cup
Dielectric Material	-	Acrylonitrile Butadiene Styrene (ABS)
Fastening Type	Bayonet Lock	Bayonet Lock
Features	-	Board Guide, Isolated
Frequency - Max [Max]	2 GHz	2 - 4 GHz
Housing Color	Silver	Silver, White
Impedance	50 Ohms	50 Ohms
Mounting Feature	-	Bulkhead - Front Side Nut, Bulkhead - Rear Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount, Right Angle
Number of Ports	1	1
Shield Termination	Solder	Solder
Voltage Rating	500 V	500 V

CONN BNC JACK STR 50 OHM PM

Part	Contact Termination	Impedance	Center Contact Material	Shield Termination	Body Material	Center Contact Plating	Fastening Type	Number of Ports	Frequency - Max [Max]	Connector Style	Connector Type	Housing Color	Voltage Rating	Mounting Type	Body Finish	Features	Mounting Feature	Dielectric Material
Suntsu Electronics, Inc SCNBN-J1150-SOSPM	Solder	50 Ohms	Brass	Solder	Zinc	Tin	Bayonet Lock	1	2 GHz	BNC	Female Socket, Jack	Silver	500 V	Panel Mount, Through Hole	Nickel
Suntsu Electronics, Inc SCNBN-J1150-SORBP	Solder	50 Ohms	Brass	Solder	Zinc	Nickel	Bayonet Lock	1	4 GHz	BNC	Female Socket, Jack	Silver		Panel Mount, Right Angle, Through Hole	Nickel	Board Guide	Bulkhead - Front Side Nut
Suntsu Electronics, Inc SCNBN-J1150-SOIPM	Solder Cup	50 Ohms	Brass	Solder	Zinc	Nickel	Bayonet Lock	1	2 GHz	BNC	Female Socket, Jack	Silver, White	500 V		Nickel	Isolated	Bulkhead - Rear Side Nut	Acrylonitrile Butadiene Styrene (ABS)
