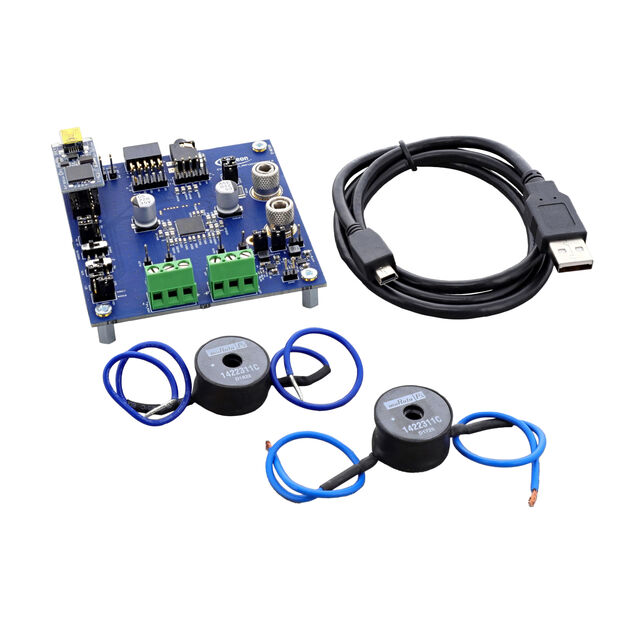

EVALAUDIOMA12070PBTOBO1

Infineon Technologies

THIS IS THE NEW VERSION MA12070P EVALUATION BOARD BASED ON THE LATEST SILICON VERSION.

Search across all available documentation for this part.

Infineon Technologies

THIS IS THE NEW VERSION MA12070P EVALUATION BOARD BASED ON THE LATEST SILICON VERSION.

Technical Specifications

Parameters and characteristics for this part

Specification	EVALAUDIOMA12070PBTOBO1

Board Type	Fully Populated
Max Output Power x Channels @ Load	2, 80 W
Output Type	2-Channel (Stereo)
Supplied Contents	Board(s)
Utilized IC / Part	MA12070P
Voltage - Supply [Max]	26 V
Voltage - Supply [Min]	5.5 V

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Board Type	Max Output Power x Channels @ Load	Output Type	Utilized IC / Part	Supplied Contents	Supplier Device Package	Mounting Type	Type	Features	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case
Infineon Technologies EVALAUDIOMA12070PBTOBO1	26 V	5.5 V	Fully Populated	2 80 W	2-Channel (Stereo)	MA12070P	Board(s)
Infineon Technologies MA12070PXUMA1	26 V	4 V		2 channels 8 Ohm 30 W	2-Channel (Stereo)			PG-VQFN-64-6	Surface Mount	Class D	Digital Inputs I2S Mute Short-Circuit and Thermal Protection Undervoltage Volume Control	0 °C	85 C	64-VFQFN Exposed Pad

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 217.66

General part information

This is the new version MA12070P evaluation board based on the latest silicon version.
