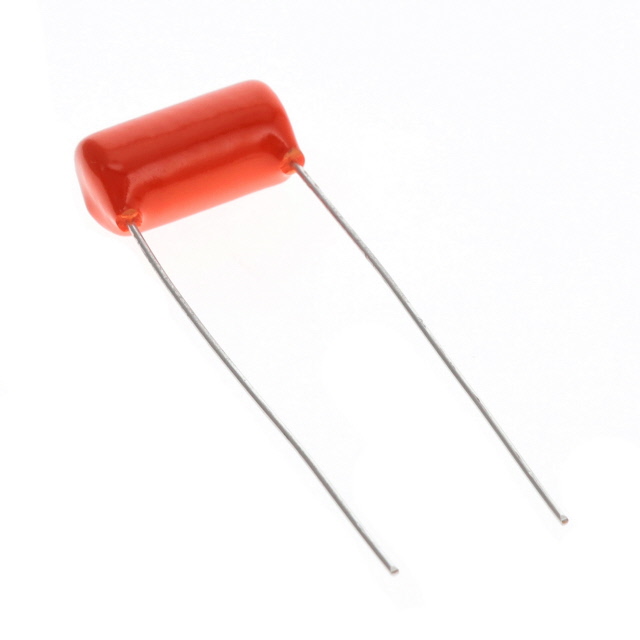

716P47354KA3
ActiveCornell Dubilier Knowles
CAP FILM 0.047UF 5% 400VDC RAD
716P47354KA3
ActiveCornell Dubilier Knowles
CAP FILM 0.047UF 5% 400VDC RAD
Description
General part information
716P47354KA3
0.047 µF Film Capacitor 200V 400V Polypropylene (PP), Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | 716P47354KA3 |
|---|---|
| Applications | High Frequency, Snubber, DV/DT, Audio, High Pulse, Switching |
| Capacitance | 47 nF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| Height - Seated (Max) | 0.87 in |
| Lead Spacing | 0.688 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Radial |
| Size / Dimension Length | 0.902 in |
| Size / Dimension Width | 0.39 in |
| Termination | PC Pins |
| Tolerance | 5 % |
| Voltage Rating - AC | 200 Vpk |
| Voltage Rating - DC | 400 V |
