CBQ1-2SALF3GT-4IN
ActiveLighthorse Technologies, Inc

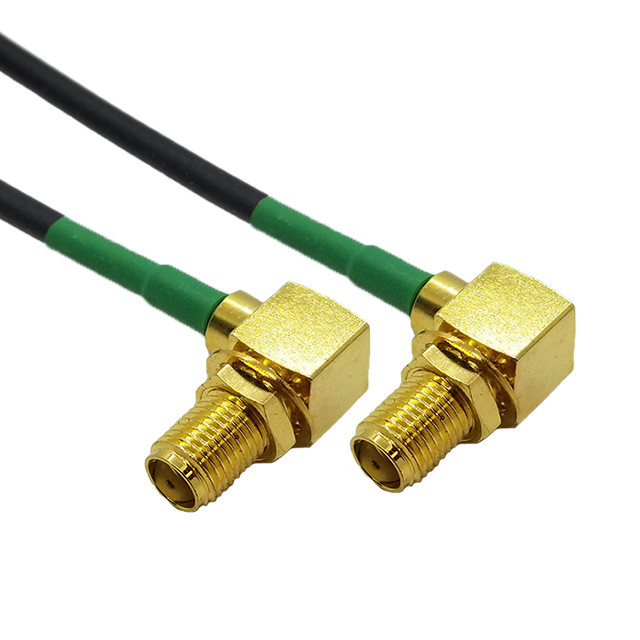

CBL ASSY SMA JACK TO JACK 4"
CBQ1-2SALF3GT-4IN
ActiveLighthorse Technologies, Inc
CBL ASSY SMA JACK TO JACK 4"
Description
General part information
CBQ1-2SALF3GT-4IN
Cable Assembly Coaxial SMA to SMA LMR 100 4.000" (101.60mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | CBQ1-2SALF3GT-4IN |
|---|---|
| 1st Connector | SMA Jack, Right Angle |
| 1st Connector Mounting Feature | Front Side Nut, Bulkhead |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | SMA Jack, Right Angle |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | LMR |
| Cable Type Size | 100 |
| Color | Black |
| Features | Shielded |
| Frequency - Max | 6000 MHz |
| Length | 4 in |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -20 °C |
| Overall Impedance | 50 Ohms |
| Style | SMA |
