034-1112-12G

Active

AMPHENOL RF

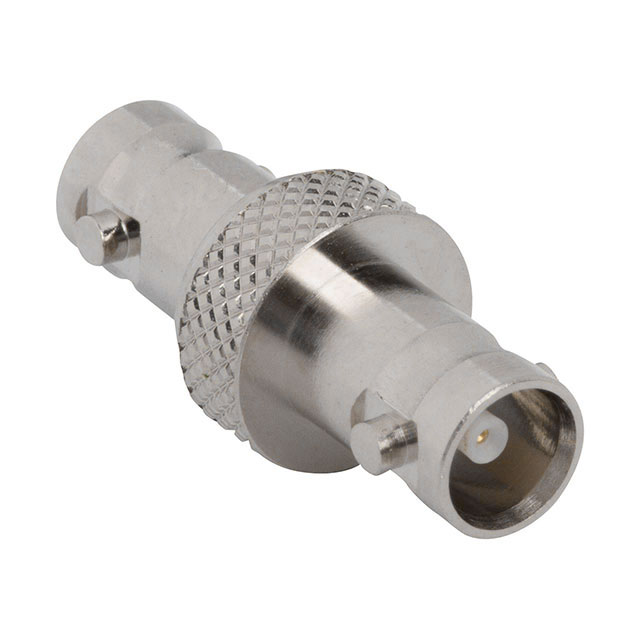

COAX ADAPT BNC HD TO BNC HD

Deep-Dive with AI

Search across all available documentation for this part.

034-1112-12G

Active

AMPHENOL RF

COAX ADAPT BNC HD TO BNC HD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	034-1112-12G	034-11 Series

	-	-
Accessory Type	-	Cap (Cover)
Adapter Series	BNC, HD to BNC, HD	BNC, HD to BNC, HD
Adapter Type	Jack to Jack	Jack to Jack, Plug to Jack
Body Finish	Nickel	Nickel, Gold
Body Material	Brass	Brass, Zinc Alloy
Cable Group	-	Belden 4794R, Belden 1794A, Canare L-3.3CUHD, Belden 4505P, 4855R, Belden 1855A, Canare L-5.5CUHD, Belden 4505R, Belden 4694R, Belden 4731P, Belden 4731R
Center Contact Material	Beryllium Copper	Phosphor Bronze, Beryllium Copper
Center Contact Plating	Gold	Gold
Center Gender	Female to Female	Female to Female
Color	-	Silver
Connector Style	-	HD, BNC
Connector Type	-	Male Pin, Plug, Female Socket, Jack
Contact Termination	-	Solder, Crimp
Conversion Type	Same Series	Same Series
Convert From (Adapter End)	BNC HD Jack, Female Socket	BNC HD Jack, Female Socket, BNC HD Plug, Male Pin
Convert To (Adapter End)	BNC HD Jack, Female Socket	BNC HD Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock	Bayonet Lock
Features	-	Isolated, Chain, Board Guide
For Use With/Related Products	-	BNC Jacks
Frequency - Max [Max]	18 GHz	4 - 18 GHz
Housing Color	-	Silver, Gold
Impedance	75 Ohms	75 Ohms
Includes	-	1 End Cap, 1 Insulator, 1 Connector, 1 Ferrule, 1 Contact, 1 Gasket
Ingress Protection	-	IP67 - Dust Tight, Waterproof
Mating Cycles	500	500
Mounting Feature	-	Bulkhead - Front Side Nut, Bulkhead
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line), Right Angle, Through Hole, Panel Mount, Through Hole, Right Angle
Number of Ports	-	1 - 2
Operating Temperature [Max]	165 °C	85 - 165 °C
Operating Temperature [Min]	-65 ░C	-65 - -30 ░C
Shield Termination	-	Crimp, Solder
Style	Straight	Straight, Right Angle

034-11 Series

034-1119-12G AMPHENOL RF CONNECTORS HD-BNC 0HZ TO 18GHZ 75OHM CRIMP RA CABLE MOUNT PL GOLD BAG - ARROW.COM

Part	Contact Termination	Mating Cycles	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Shield Termination	Frequency - Max [Max]	Includes	Connector Style	Center Contact Plating	Dielectric Material	Body Material	Connector Type	Mounting Type	Number of Ports	Housing Color	Body Finish	Fastening Type	Center Contact Material	Cable Group	Features	Mounting Feature	Style	Convert To (Adapter End)	Center Gender	Adapter Type	Convert From (Adapter End)	Conversion Type	Adapter Series
AMPHENOL RF 034-1119-12G	Solder	500	75 Ohms	-65 ░C	165 °C	Crimp	12 GHz	1 Connector, 1 End Cap, 1 Insulator	BNC, HD	Gold	Polytetrafluoroethylene (PTFE)	Brass	Male Pin, Plug	Free Hanging (In-Line), Right Angle	1	Silver	Nickel	Bayonet Lock	Phosphor Bronze	Belden 1794A, Belden 4794R
AMPHENOL RF 034-1140-12G	Solder	500	75 Ohms	-40 °C	85 °C	Solder	18 GHz		BNC, HD	Gold	Polytetrafluoroethylene (PTFE)	Brass	Female Socket, Jack	Panel Mount, Right Angle, Through Hole	1	Gold, Silver	Gold, Nickel	Bayonet Lock	Beryllium Copper		Isolated	Bulkhead - Front Side Nut
AMPHENOL RF 034-1128-12G	Crimp	500	75 Ohms	-30 ░C	85 °C	Crimp	18 GHz	1 Connector, 1 Contact, 1 Ferrule	BNC, HD	Gold	Polytetrafluoroethylene (PTFE)	Brass	Male Pin, Plug	Free Hanging (In-Line)	1	Silver	Nickel	Bayonet Lock	Phosphor Bronze	Canare L-3.3CUHD
AMPHENOL RF 034-1130-12G	Crimp	500	75 Ohms	-30 ░C	85 °C	Crimp	18 GHz	1 Connector, 1 Contact, 1 Ferrule	BNC, HD	Gold	Polytetrafluoroethylene (PTFE)	Brass	Male Pin, Plug	Free Hanging (In-Line)	1	Silver	Nickel	Bayonet Lock	Phosphor Bronze
AMPHENOL RF 034-1137-12G	Crimp	500	75 Ohms	-30 ░C	85 °C	Crimp	18 GHz		BNC, HD	Gold	Polytetrafluoroethylene (PTFE)	Brass	Male Pin, Plug	Free Hanging (In-Line)	1	Silver	Nickel	Bayonet Lock	Phosphor Bronze	Belden 4505P
AMPHENOL RF 034-1110-12G		500	75 Ohms	-65 ░C	165 °C		18 GHz			Gold		Brass					Nickel	Bayonet Lock	Beryllium Copper		Isolated	Bulkhead	Straight	BNC HD Jack, Female Socket	Female to Female	Jack to Jack	BNC HD Jack, Female Socket	Same Series	BNC, HD, HD to BNC
AMPHENOL RF 034-1109-12G		500	75 Ohms	-65 ░C	165 °C		18 GHz			Gold	Polytetrafluoroethylene (PTFE)	Brass					Nickel	Bayonet Lock	Beryllium Copper			Bulkhead	Straight	BNC HD Jack, Female Socket	Female to Female	Jack to Jack	BNC HD Jack, Female Socket	Same Series	BNC, HD, HD to BNC
AMPHENOL RF 034-1107-12G	Crimp	500	75 Ohms	-65 ░C	165 °C	Crimp	18 GHz	1 Connector, 1 Contact, 1 Ferrule, 1 Insulator	BNC, HD	Gold	Polytetrafluoroethylene (PTFE)	Brass	Male Pin, Plug	Free Hanging (In-Line)	1	Silver	Nickel	Bayonet Lock	Phosphor Bronze	4855R, Belden 1855A
AMPHENOL RF 034-1118-12G	Solder	500	75 Ohms	-65 ░C	165 °C	Crimp	18 GHz	1 Connector, 1 End Cap, 1 Insulator	BNC, HD	Gold	Polytetrafluoroethylene (PTFE)	Brass	Male Pin, Plug	Free Hanging (In-Line), Right Angle	1	Silver	Nickel	Bayonet Lock	Phosphor Bronze	4855R, Belden 1855A
AMPHENOL RF 034-1111-12G		500	75 Ohms	-65 ░C	165 °C		18 GHz			Gold	Polytetrafluoroethylene (PTFE)	Brass		Free Hanging (In-Line), Right Angle			Nickel	Bayonet Lock	Beryllium Copper, Phosphor Bronze				Right Angle	BNC HD Jack, Female Socket		Plug to Jack	BNC HD Plug, Male Pin	Same Series	BNC, HD, HD to BNC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 51.29
		10	$ 43.60
		25	$ 40.87
		50	$ 38.92
		100	$ 37.06
		250	$ 34.75

Description

General part information

034-11 Series

Adapter Coaxial Connector BNC HD Jack, Female Socket To BNC HD Jack, Female Socket 75 Ohms
