DMS-30PC-4/20S-24RS-I-C
ActivePANEL METER, DMS-30PC-4/20S SERIES, CURRENT LOOP, 4 TO 20MA, 3.5 DIGITS, 21.6 V TO 26.4 V, RED
Deep-Dive with AI
Search across all available documentation for this part.
DMS-30PC-4/20S-24RS-I-C
ActivePANEL METER, DMS-30PC-4/20S SERIES, CURRENT LOOP, 4 TO 20MA, 3.5 DIGITS, 21.6 V TO 26.4 V, RED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DMS-30PC-4/20S-24RS-I-C | DMS-30PC Series |
|---|---|---|
| Display Characters - Height | - | 14.2 mm |
| Display Characters - Height | - | 0.56 in |
| Display Type | - | LED - Green Characters, LED - Red Characters, LED - Yellow Characters, LED - Orange Characters |
| Features | - | Bezel Sold Separately |
| Measuring Range | - | -200 - -2 V |
| Measuring Range | - | 0.2 - 200 V |
| Measuring Type | - | Voltage, Process |
| null | - | |
| Number of Characters Per Row | - | 3.5 |
| Operating Temperature | - | 60 °C |
| Operating Temperature | - | 0 °C |
| Output Type | - | Reference |
| Panel Cutout Dimensions | - | 22.3 mm |
| Panel Cutout Dimensions | - | 53.8 mm |
| Termination Style | - | PC Pin, Screw Terminal |
| Type | - | Voltmeter, Process Meter |
| Voltage - Supply | - | 5 - 24 V |
| Voltage - Supply | - | 7.5 V |
| Voltage - Supply | - | 32 VDC |
| Weight | - | 20.87 - 28.12 g |
| Weight | - | 0.046 - 0.062 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
DMS-30PC Series
DISPLAYS, 30.5 DIGIT, LED DISPLAY LOW-POWER, MINIATURE DIGITAL PANEL VOLTMETERS
| Part | Weight | Weight | Display Type | Output Type | Display Characters - Height [z] | Display Characters - Height [z] | Measuring Range [Min] | Measuring Range [Max] | Measuring Type | Number of Characters Per Row | Type | Features | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Voltage - Supply | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply [Min] | Voltage - Supply [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. DMS-30PC-1-RS-C | ||||||||||||||||||||
Murata Power Solutions Inc. DMS-30PC-4/20S-24RL-C | ||||||||||||||||||||
Murata Power Solutions Inc. DMS-30PC-1-RH-C | ||||||||||||||||||||
Murata Power Solutions Inc. DMS-30PC-3-GS-C | 20.87 g | 0.046 lb | LED - Green Characters | Reference | 14.2 mm | 0.56 in | -200 V | 200 V | Voltage | 3.5 | Voltmeter | Bezel Sold Separately | 22.3 mm | 53.8 mm | 5 V | PC Pin | 60 °C | 0 °C | ||
Murata Power Solutions Inc. DMS-30PC-4/20S-24RS-I-C | ||||||||||||||||||||
Murata Power Solutions Inc. DMS-30PC-2-GS-C | 20.87 g | 0.046 lb | LED - Green Characters | Reference | 14.2 mm | 0.56 in | Voltage | 3.5 | Voltmeter | 22.3 mm | 53.8 mm | 5 V | PC Pin | 60 °C | 0 °C | |||||
Murata Power Solutions Inc. DMS-30PC-2-RL-C | 20.87 g | 0.046 lb | LED - Red Characters | Reference | 14.2 mm | 0.56 in | Voltage | 3.5 | Voltmeter | 22.3 mm | 53.8 mm | 5 V | PC Pin | 60 °C | 0 °C | |||||
Murata Power Solutions Inc. DMS-30PC-1-GS-C | 20.87 g | 0.046 lb | LED - Green Characters | Reference | 14.2 mm | 0.56 in | -2 V | 2 V | Voltage | 3.5 | Voltmeter | 22.3 mm | 53.8 mm | 5 V | PC Pin | 60 °C | 0 °C | |||
Murata Power Solutions Inc. DMS-30PC-2-RL-C | ||||||||||||||||||||
Murata Power Solutions Inc. DMS-30PC-2-YS-C | 20.87 g | 0.046 lb | LED - Yellow Characters | Reference | 14.2 mm | 0.56 in | Voltage | 3.5 | Voltmeter | Bezel Sold Separately | 22.3 mm | 53.8 mm | 5 V | PC Pin | 60 °C | 0 °C |
Description
General part information
DMS-30PC Series

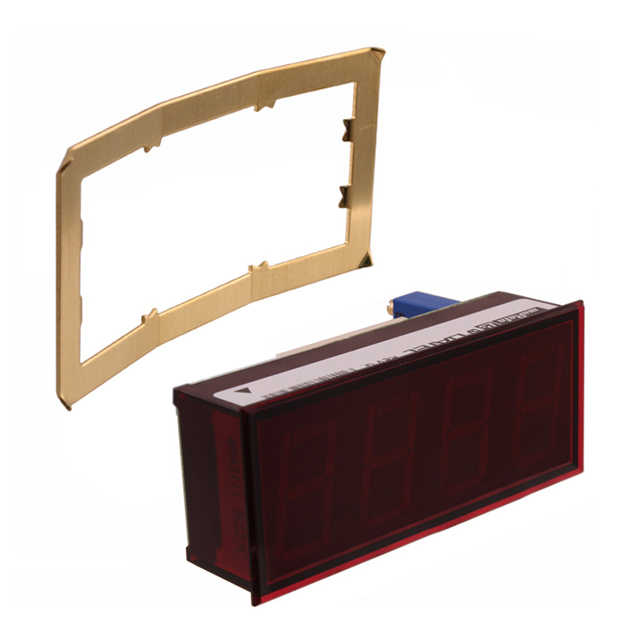

The DMS-30PC-4/20S-24RS-I-C is a 3-1/2-digit standard-intensity red LED Panel Meter with isolated supply. It offers an outstanding combination of electrical performance, display readability, ease-of-use and long-term reliability. This meter is constructed using Murata Power Solutions super-reliable, field-proven epoxy-encapsulated DMS-30PC digital voltmeter. The decimal point and range-change settings are made on a gold-plated, vibration-resistant, DIP switch and there is no cumbersome solder gap or jumpers to contend with connections to the current loop and the power source are both made on a rugged, 4-position, screw-type terminal block. It is user-friendly design accommodates virtually hundreds of different input-current/output-reading combinations. This eliminates the majority of requirements for more costly, long-lead-time, factory "specials" especially in applications requiring several different-range meter.
