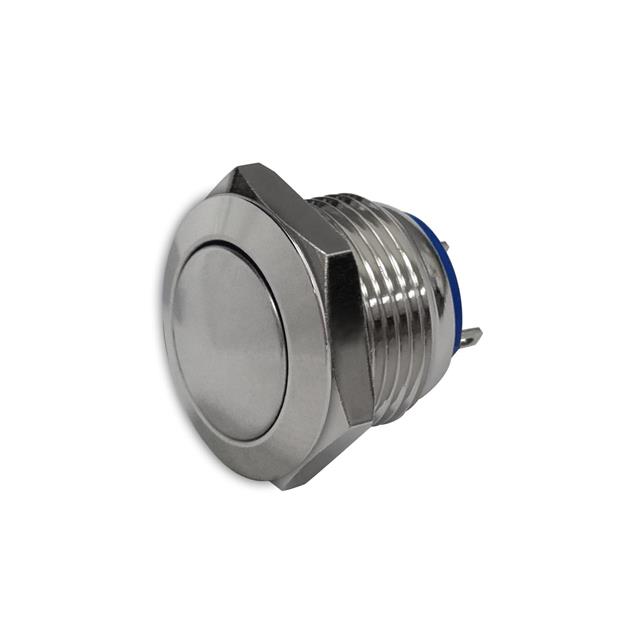

SW-PB7-01B32BFM
ActiveAdam Tech
ANTI-VANDAL PUSHBUTTON SWITCH, 1
Deep-Dive with AI
Search across all available documentation for this part.
SW-PB7-01B32BFM
ActiveAdam Tech
ANTI-VANDAL PUSHBUTTON SWITCH, 1
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SW-PB7-01B32BFM |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button |
| Circuit | SPST-NO |
| Color - Actuator/Cap | Silver |
| Current Rating (Amps) | 500 mA |
| Electrical Life | 50000 Cycles |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 16.5 mm |
| Switch Function | Off-Mom |
| Termination Style | Solder Lug |
| Type | Anti-Vandal |
| Voltage Rating - AC | 220 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 11.45 | |
| 10 | $ 9.88 | |||
| 25 | $ 9.32 | |||
| 50 | $ 8.91 | |||
| 100 | $ 8.52 | |||
| 300 | $ 7.94 | |||
| 500 | $ 7.68 | |||
| 1000 | $ 7.34 | |||
Description
General part information
SW-PB7-01B32BFM
Pushbutton Switch SPST-NO Anti-Vandal Panel Mount, Front
