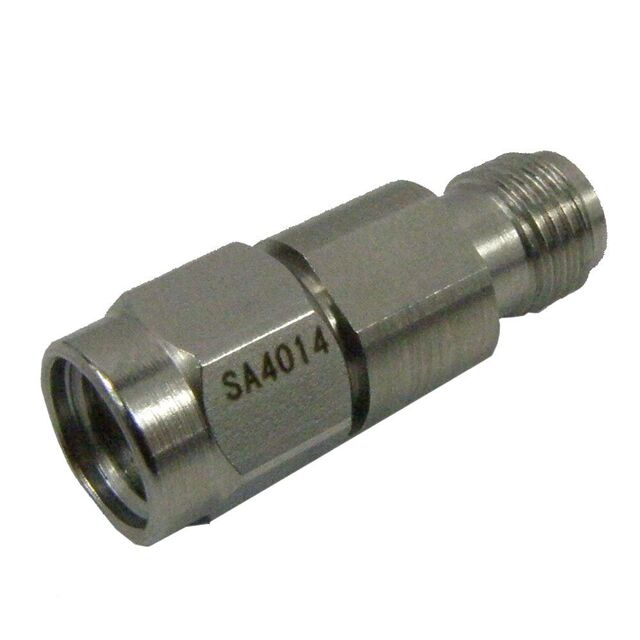

SA4014-05
ActiveFairview Microwave
FXD ATTN PLUG-JACK 2.92MM SS 1.4
SA4014-05
ActiveFairview Microwave
FXD ATTN PLUG-JACK 2.92MM SS 1.4
Description
General part information
SA4014-05
RF Attenuators 5dB 0 Hz ~ 40 GHz 50 Ohms 1W 2.92mm In-Line Module
Technical Specifications
Parameters and characteristics for this part
| Specification | SA4014-05 |
|---|---|
| Attenuation Value | 5 dB |
| Frequency Range (Max) | 40 GHz |
| Frequency Range (Min) | 0 Hz |
| Impedance | 50 Ohm |
| Package / Case | 2.92mm In-Line Module |
| Package / Case Dimension | 2.92 mm |
| Package / Case Type | In-Line Module |
| Package Diameter | 2.92 mm |
| Package Name | In-Line Module |
| Power (Watts) | 1 W |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
