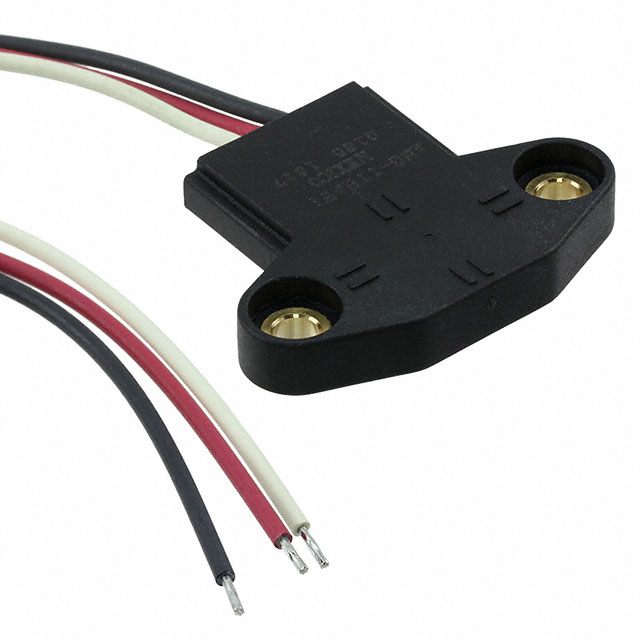

ANG-11HAW1

Active

ZF Electronics

SENSOR ANGLE 360DEG WIRE LEADS

Search across all available documentation for this part.

Active

ZF Electronics

SENSOR ANGLE 360DEG WIRE LEADS

Technical Specifications

Parameters and characteristics for this part

Specification	ANG-11HAW1

Actuator Type	External Magnet, Not Included
For Measuring	Angle
Linearity	1 %
Mounting Type	Chassis Mount
Operating Temperature [Max]	140 °C
Operating Temperature [Min]	-40 °C
Output	Analog Voltage
Package / Case	Box with Wire Leads
Rotation Angle - Electrical, Mechanical [Max]	360 °
Rotation Angle - Electrical, Mechanical [Min]	0 °
Technology	Hall Effect
Termination Style	Wire Leads

SENSOR ANGLE 360DEG WIRE LEADS

Part	Output	Termination Style	Package / Case	Mounting Type	Rotation Angle - Electrical, Mechanical [Max]	Rotation Angle - Electrical, Mechanical [Min]	For Measuring	Linearity	Operating Temperature [Max]	Operating Temperature [Min]	Technology	Actuator Type
ZF Electronics ANG-11HAW1	Analog Voltage	Wire Leads	Box with Wire Leads	Chassis Mount	360 °	0 °	Angle	1 %	140 °C	-40 °C	Hall Effect	External Magnet, Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hall Effect Sensor Angle External Magnet, Not Included Wire Leads

Technical documentation and resources

No documents available
