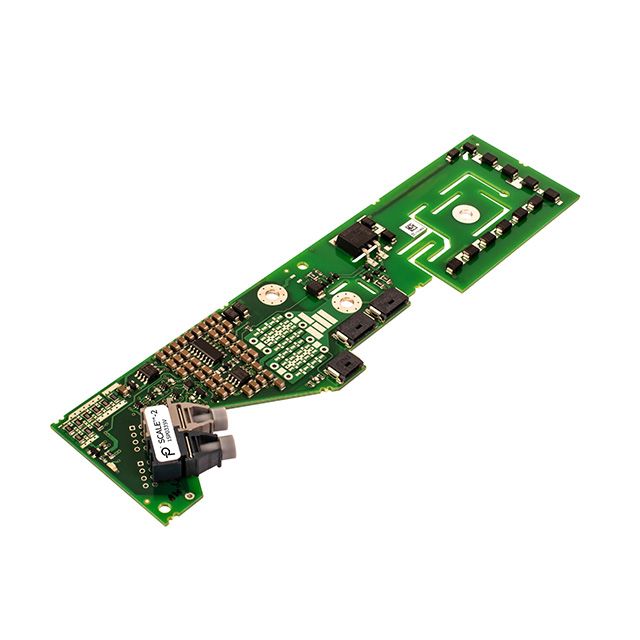

1SP0335V2M1-45

Active

Power Integrations

IGBT DRIVER, 23.5V-26.5V, MODULE ROHS COMPLIANT: NO

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

1SP0335V2M1-45

Active

Power Integrations

IGBT DRIVER, 23.5V-26.5V, MODULE ROHS COMPLIANT: NO

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1SP0335V2M1-45	1SP0335 Series

Channel Type	Single	Single
Current - Peak Output (Source, Sink) [custom]	35 A	35 A
Current - Peak Output (Source, Sink) [custom]	35 A	35 A
Driven Configuration	High-Side, Low-Side	High-Side, Low-Side
Gate Type	IGBT	IGBT
High Side Voltage - Max (Bootstrap) [Max]	4500 V	3300 - 6500 V
Mounting Type	Surface Mount	Chassis Mount, Surface Mount
Number of Drivers	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Module	Module
Rise / Fall Time (Typ) [custom]	30 ns	30 ns
Rise / Fall Time (Typ) [custom]	9 ns	9 ns
Supplier Device Package	Module	Module
Voltage - Supply [Max]	26.5 V	26.5 V
Voltage - Supply [Min]	23.5 V	23.5 V

1SP0335 Series

IC GATE DRVR HI/LOW SIDE MODULE

Part	Gate Type	Mounting Type	Supplier Device Package	Driven Configuration	Channel Type	Package / Case	High Side Voltage - Max (Bootstrap) [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Number of Drivers
Power Integrations 1SP0335V2M1C-CM900HG-90H	IGBT	Chassis Mount	Module	High-Side, Low-Side	Single	Module	4500 V	26.5 V	23.5 V	85 °C	-40 °C	30 ns	9 ns	35 A	35 A	1
Power Integrations 1SP0335V2M1C-FZ600R65KF2	IGBT	Chassis Mount	Module	High-Side, Low-Side	Single	Module	6500 V	26.5 V	23.5 V	85 °C	-40 °C	30 ns	9 ns	35 A	35 A	1
Power Integrations 1SP0335D2S1-45	IGBT	Surface Mount	Module	High-Side, Low-Side	Single	Module	4500 V	26.5 V	23.5 V	85 °C	-40 °C	30 ns	9 ns	35 A	35 A	1
Power Integrations 1SP0335D2S1-65	IGBT	Surface Mount	Module	High-Side, Low-Side	Single	Module	6500 V	26.5 V	23.5 V	85 °C	-40 °C	30 ns	9 ns	35 A	35 A	1
Power Integrations 1SP0335V2M1-45	IGBT	Surface Mount	Module	High-Side, Low-Side	Single	Module	4500 V	26.5 V	23.5 V	85 °C	-40 °C	30 ns	9 ns	35 A	35 A	1
Power Integrations 1SP0335V2M1-33	IGBT	Surface Mount	Module	High-Side, Low-Side	Single	Module	3300 V	26.5 V	23.5 V	85 °C	-40 °C	30 ns	9 ns	35 A	35 A	1
Power Integrations 1SP0335V2M1-MBN750H65E2	IGBT	Chassis Mount	Module	High-Side, Low-Side	Single	Module	6500 V	26.5 V	23.5 V	85 °C	-40 °C	30 ns	9 ns	35 A	35 A	1
Power Integrations 1SP0335V2M1-CM600HG-130H	IGBT	Chassis Mount	Module	High-Side, Low-Side	Single	Module	6500 V	26.5 V	23.5 V	85 °C	-40 °C	30 ns	9 ns	35 A	35 A	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 289.25
		10	$ 280.35

Description

General part information

1SP0335 Series

High-Side or Low-Side Gate Driver IC Module

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
