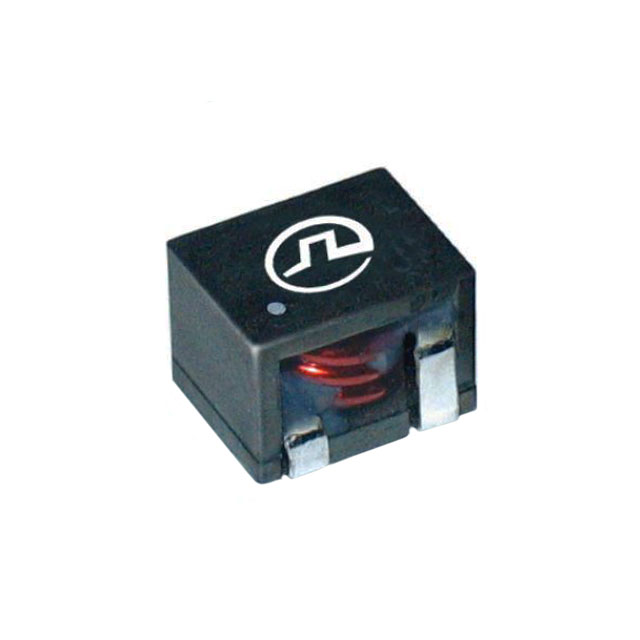

PG1096.473NLT
ActivePulse Electronics
PULSE XFMR 42.3UH
PG1096.473NLT
ActivePulse Electronics
PULSE XFMR 42.3UH
Description
General part information
PG1096.473NLT
42.3 µH Unshielded Wirewound Inductor 11 A 12.5mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PG1096.473NLT |
|---|---|
| Current - Saturation (Isat) | 13 A |
| Current Rating | 11 A |
| DC Resistance (DCR) (Max) | 12.5 mOhm |
| Height - Seated (Max) | 0.583 in |
| Inductance | 42.3 µH |
| Inductance Frequency - Test | 100 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 1.024 in |
| Size / Dimension Width | 1.024 in |
| Tolerance | 20 % |
| Type | Wirewound |
