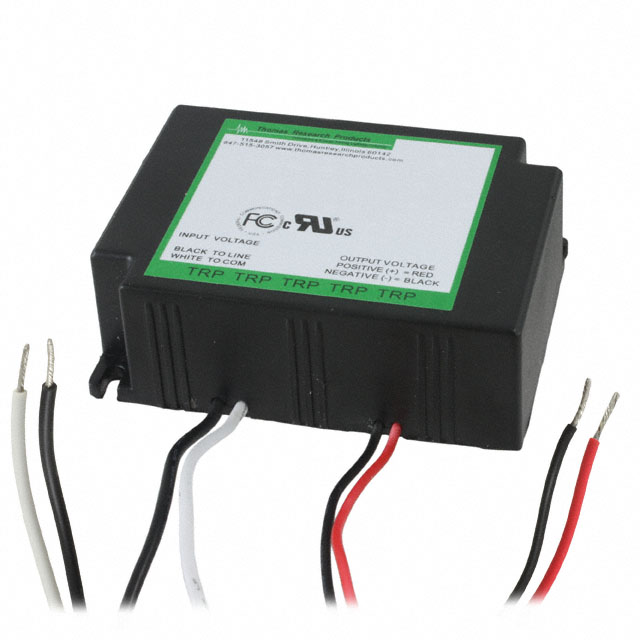

LED40W-022-C1820

Obsolete

Thomas Research Products

LED DRIVER CC AC/DC 7-22V 1.82A

Search across all available documentation for this part.

Obsolete

Thomas Research Products

LED DRIVER CC AC/DC 7-22V 1.82A

Technical Specifications

Parameters and characteristics for this part

LED DRIVER CC AC/DC 7-22V 1.82A

Part	Weight	Weight	Voltage - Output [Max]	Voltage - Output [Min]	Ratings	Type	Approval Agency	Features	Termination Style	Number of Outputs	Efficiency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Topology	Mounting Type	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]
Thomas Research Products LED40W-022-C1820	323.41 g	0.713 lb	22 V	11 V	IP66, NEMA 4	Constant Current	CE, cURus	OCP, OVP, SCP	Wire Leads	1	86 %	70 mm	95 mm	2.76 in	3.74 "	32 mm	1.26 in	-30 ░C	60 °C	40 W	AC DC Converter	Chassis Mount	1.82 A	90 VAC	305 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1.82A 11 ~ 22V Constant Current LED Driver AC DC Converter Topology 1 Output
