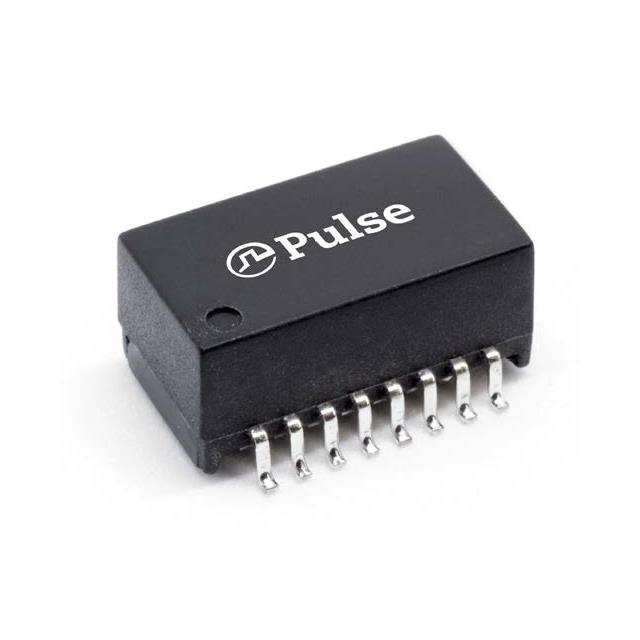

HX1198ENL
ActivePulse Electronics
MODULE XFRMR POE 100B-TX HI TEMP
HX1198ENL
ActivePulse Electronics
MODULE XFRMR POE 100B-TX HI TEMP
Description
General part information
HX1198ENL
LAN 100 Base-T Pulse Transformer 1:1 Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | HX1198ENL |
|---|---|
| Height - Seated (Max) | 0.23 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Size / Dimension Length | 0.5 in |
| Size / Dimension Width | 0.28 in |
| Transformer Type | LAN 100 Base-T |
| Turns Ratio - Primary | 1 |
| Turns Ratio - Secondary | 1 |
