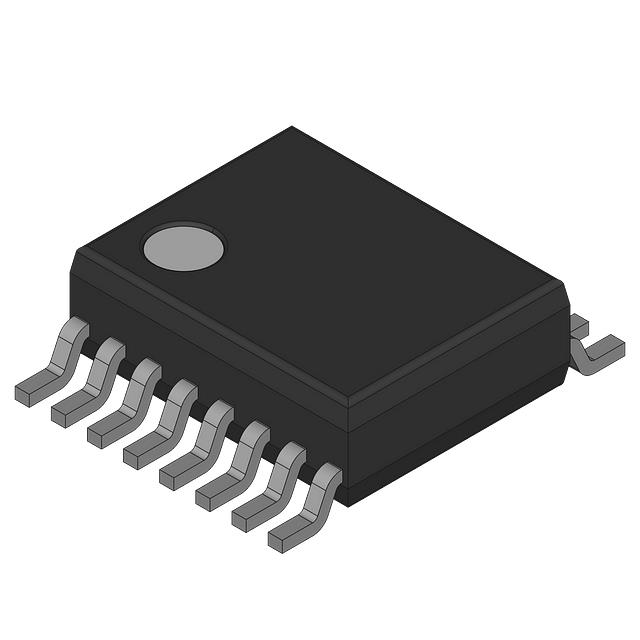

QS3VH2245Z4Q
ActiveIDT, Integrated Device Technology Inc
QUICKSWITCH 2.5V / 3.3V 8 BIT H
Deep-Dive with AI
Search across all available documentation for this part.
QS3VH2245Z4Q
ActiveIDT, Integrated Device Technology Inc
QUICKSWITCH 2.5V / 3.3V 8 BIT H
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | QS3VH2245Z4Q | QS3VH2245 Series |
|---|---|---|
| Circuit | - | 8:1 |
| Circuit | - | 1 |
| Independent Circuits | - | 1 |
| Mounting Type | - | Surface Mount |
| null | - | |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 4.4 mm |
| Package / Case | - | 20-TSSOP, 20-SSOP |
| Package / Case | - | 0.173 in |
| Package / Case | - | 0.154 in |
| Package / Case | - | 3.9 mm |
| Supplier Device Package | - | 20-TSSOP, 20-QSOP |
| Type | - | Bus Switch |
| Voltage - Supply | - | 2.3 V |
| Voltage - Supply | - | 3.6 V |
| Voltage Supply Source | - | Single Supply |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1025 | $ 0.29 | |
QS3VH2245 Series
IC BUS SWITCH 1 X 8:1 20-TSSOP
| Part | Mounting Type | Voltage Supply Source | Independent Circuits | Circuit [custom] | Circuit [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case [y] | Package / Case | Package / Case [x] | Supplier Device Package | Type | Voltage - Supply [Min] | Voltage - Supply [Max] | Package / Case [custom] | Package / Case [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IDT, Integrated Device Technology Inc QS3VH2245PAG | Surface Mount | Single Supply | 1 | 8:1 | 1 | 85 °C | -40 °C | 4.4 mm | 20-TSSOP | 0.173 in | 20-TSSOP | Bus Switch | 2.3 V | 3.6 V | ||
IDT, Integrated Device Technology Inc QS3VH2245QG | Surface Mount | Single Supply | 1 | 8:1 | 1 | 85 °C | -40 °C | 20-SSOP | 20-QSOP | Bus Switch | 2.3 V | 3.6 V | 0.154 in | 3.9 mm | ||
IDT, Integrated Device Technology Inc QS3VH2245Z4Q |
Description
General part information
QS3VH2245 Series
Element Bit per Element Output
