722ACF

Active

Switchcraft Inc.

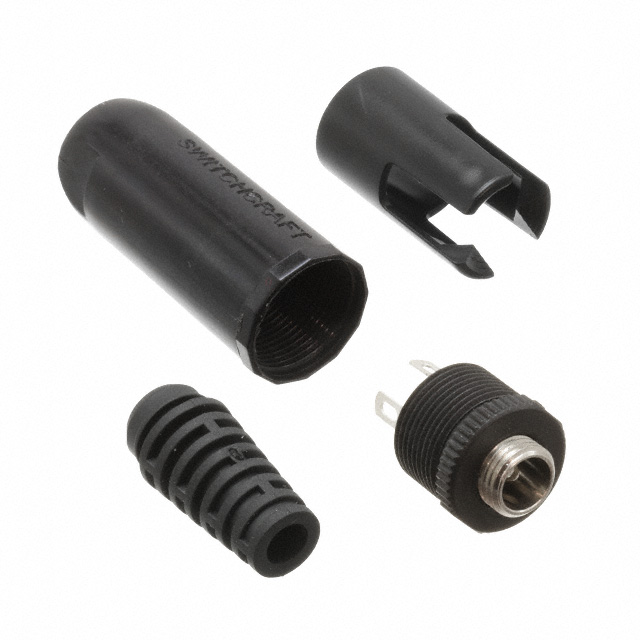

DC POWER JACK, IN-LINE, 2.0MM, S

Search across all available documentation for this part.

Active

Switchcraft Inc.

DC POWER JACK, IN-LINE, 2.0MM, S

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Barrel Connector Jack 2.00mm ID (0.079") Free Hanging (In-Line)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	722ACF	722A Series

Actual Diameter	0.079 "	0.079 "
Actual Diameter	2 mm	2 mm
Body Color	Silver, Black	Silver, Black
Body Material	Copper Alloy	Copper Alloy
Connector Type	Jack	Jack
Contact Material	Copper Alloy	Copper Alloy
Contact Material - Plating	Tin	Tin
Current Rating (Amps)	5 A	5 A
Features	Strain Relief	Strain Relief
Gender	Male	Male
Housing Material	Thermoplastic	Thermoplastic
Industry Recognized Mating Diameter [diameter]	2 mm	2 mm
Industry Recognized Mating Diameter [diameter]	0.079 in	0.079 in
Insulation Color	Black	Black
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions/Contacts	3 Conductors, 2 Conductors	2 - 3 Conductors
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Shielding	Unshielded	Unshielded
Termination	Solder Eyelet(s)	Solder Eyelet(s)
Voltage - Rated	24 VDC	24 VDC

CONN DC POWER RCP ST CABLE MOUNT 1 PORT

Part	Number of Positions/Contacts	Body Material	Gender	Connector Type	Housing Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Actual Diameter	Actual Diameter	Termination	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Voltage - Rated	Shielding	Insulation Color	Body Color	Contact Material - Plating	Current Rating (Amps)	Mounting Type	Features
Switchcraft Inc. 722AC	2 Conductors, 3 Conductors	Copper Alloy	Male	Jack	Thermoplastic	-40 °C	105 ░C	Copper Alloy	0.079 "	2 mm	Solder Eyelet(s)	2 mm	0.079 in	24 VDC	Unshielded	Black	Black, Silver	Tin	5 A	Free Hanging (In-Line)
Switchcraft Inc. 722ACF	2 Conductors, 3 Conductors	Copper Alloy	Male	Jack	Thermoplastic	-40 °C	105 ░C	Copper Alloy	0.079 "	2 mm	Solder Eyelet(s)	2 mm	0.079 in	24 VDC	Unshielded	Black	Black, Silver	Tin	5 A	Free Hanging (In-Line)	Strain Relief
