SY89322VMG-TR
ActivePECL TRANSLATOR, 2 INPUT, 600 PS, 3 V TO 5.5 V, 8 PINS, MLF-EP
Deep-Dive with AI
Search across all available documentation for this part.
SY89322VMG-TR
ActivePECL TRANSLATOR, 2 INPUT, 600 PS, 3 V TO 5.5 V, 8 PINS, MLF-EP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SY89322VMG-TR | SY89322 Series |
|---|---|---|
| Channel Type | Unidirectional | Unidirectional |
| Channels per Circuit | 2 | 2 |
| Input Signal | LVCMOS, LVTTL | LVCMOS, LVTTL |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Circuits | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Signal | LVPECL | LVPECL |
| Output Type | Differential | Differential |
| Package / Case | 8-MLF®, 8-VFDFN Exposed Pad | 8-MLF®, 8-VFDFN Exposed Pad |
| Supplier Device Package | 8-MLF® (2x2) | 8-MLF® (2x2) |
| Translator Type | Mixed Signal | Mixed Signal |
SY89322 Series
IC TRANSLTR UNIDIRECTIONAL 8MLF
| Part | Output Signal | Output Type | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Number of Circuits | Package / Case | Channel Type | Channels per Circuit | Mounting Type | Translator Type | Input Signal |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology SY89322VMI-TR | LVPECL | Differential | 85 °C | -40 °C | 8-MLF® (2x2) | 1 | 8-MLF®, 8-VFDFN Exposed Pad | Unidirectional | 2 | Surface Mount | Mixed Signal | LVCMOS, LVTTL |
Microchip Technology SY89322VMG-TR | LVPECL | Differential | 85 °C | -40 °C | 8-MLF® (2x2) | 1 | 8-MLF®, 8-VFDFN Exposed Pad | Unidirectional | 2 | Surface Mount | Mixed Signal | LVCMOS, LVTTL |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.06 | |
| 25 | $ 4.22 | |||
| 100 | $ 3.84 | |||
| Digi-Reel® | 1 | $ 5.06 | ||
| 25 | $ 4.22 | |||
| 100 | $ 3.84 | |||
| Tape & Reel (TR) | 1000 | $ 3.84 | ||
| Microchip Direct | T/R | 1 | $ 5.06 | |
| 25 | $ 4.22 | |||
| 100 | $ 3.84 | |||
| 1000 | $ 3.19 | |||
| 5000 | $ 2.95 | |||
| 10000 | $ 2.75 | |||
Description
General part information
SY89322 Series

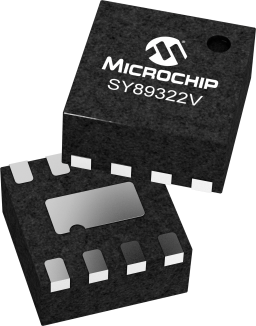

The SY89322V is a dual TTL/CMOS-to-differential PECL translator capable of running from a 3.3V or 5V supply. This part can be used in either LVTTL/LVCMOS/LVPECL or TTL/CMOS/PECL systems. It requires only a single positive supply of +3.3V or +5V, no negative supply is required.The SY89322V is functionally equivalent to the SY100EPT22V, but in an ultra-small 8-lead MLF® package that features a 70% smaller footprint. The ultra-small package and the low skew, dual gate design of the SY89322V makes it ideal for those applications where space, performance and low power are at a premium.
