Q-7101T00052.5M
ActiveAmphenol Custom Cable
CBL ASSY RPSMA-NTYPE JK-JK 8.2'
Deep-Dive with AI
Search across all available documentation for this part.
Q-7101T00052.5M
ActiveAmphenol Custom Cable
CBL ASSY RPSMA-NTYPE JK-JK 8.2'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-7101T00052.5M |
|---|---|
| 1st Connector | RP-SMA Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-316 |
| Color | Copper |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max [Max] | 1 GHz |
| Length | 8.2 ' |
| Length | 98.4 in |
| Length | 2.5 m |
| Overall Impedance | 50 Ohms |
| Style | RP-SMA to N-Type |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 82.34 | |
| 25 | $ 76.70 | |||
| 50 | $ 71.06 | |||
| 100 | $ 66.22 | |||
| 250 | $ 62.19 | |||
Description
General part information
Q-7101T00052.5M

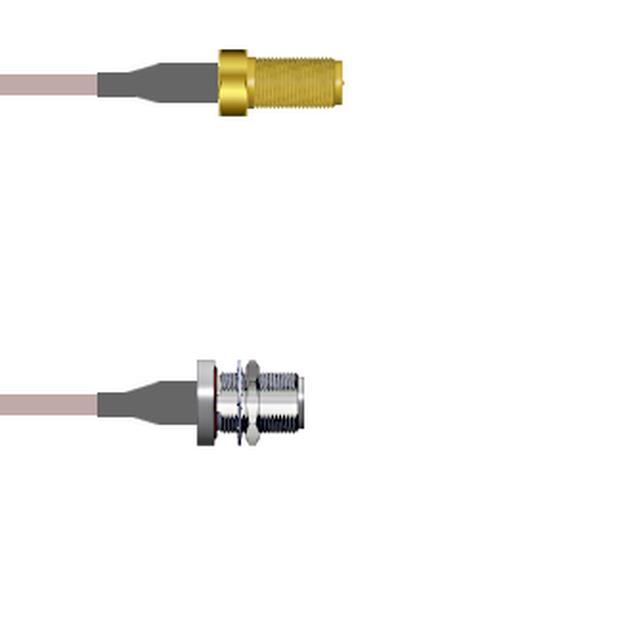

Cable Assembly Coaxial RP-SMA to N-Type RG-316 98.4" (2.5m) 8.2'
