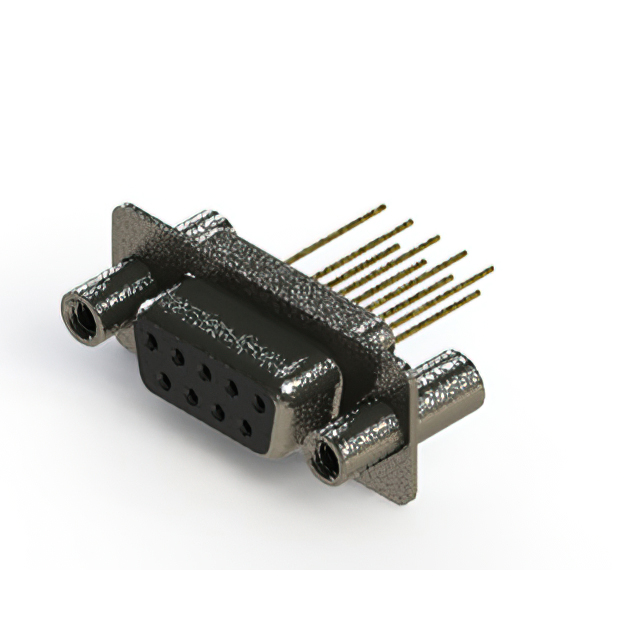

Specification	628-M09-223-BT4

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA6T), Nylon 6T
Features	Shielded, Board Lock
Flange Feature	4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder

628-M09 Series

...

Part	Flange Feature	Contact Finish	Termination	Color	Contact Material	Dielectric Material	Material Flammability Rating	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Finish Thickness	Contact Finish Thickness	Current Rating (Amps)	Features	Contact Type	Number of Rows	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Connector Type	Mounting Type	Shell Material, Finish	Contact Finish Thickness
EDAC Inc. 628-M09-321-WT1	Housing/Shell (Unthreaded)	Gold	Solder	White	Copper Alloy	Polyamide (PA6T) Nylon 6T	UL94 V-0	DE E	1	15 µin	0.38 µm	5 A	Shielded	Signal and Power	2	9	-55 °C	125 °C	D-Sub	Receptacle Female Sockets	Through Hole
EDAC Inc. 628-M09-621-LN5	4-40 Board Side	Gold	Solder	Blue	Copper Alloy	Polyamide (PA6T) Nylon 6T	UL94 V-0	DE E	1	30 Áin	0.76 Ám	5 A	Board Lock Shielded	Signal and Power	2	9	-55 °C	125 °C	D-Sub	Receptacle Female Sockets	Through Hole	Nickel Plated Steel
EDAC Inc. 628-M09-621-WT6	4-40	Gold	Solder	White	Copper Alloy	Polyamide (PA6T) Nylon 6T	UL94 V-0	DE E	1	30 Áin	0.76 Ám	5 A	Board Lock Shielded	Signal and Power	2	9	-55 °C	125 °C	D-Sub	Receptacle Female Sockets	Through Hole
EDAC Inc. 628-M09-221-LN1	Housing/Shell (Unthreaded)	Gold	Solder	Blue	Copper Alloy	Polyamide (PA6T) Nylon 6T	UL94 V-0	DE E	1			5 A	Shielded	Signal and Power	2	9	-55 °C	125 °C	D-Sub	Receptacle Female Sockets	Through Hole	Nickel Plated Steel	Flash
EDAC Inc. 628-M09-221-LN5	4-40 Board Side	Gold	Solder	Blue	Copper Alloy	Polyamide (PA6T) Nylon 6T	UL94 V-0	DE E	1			5 A	Board Lock Shielded	Signal and Power	2	9	-55 °C	125 °C	D-Sub	Receptacle Female Sockets	Through Hole	Nickel Plated Steel	Flash
EDAC Inc. 628-M09-623-GN4	4-40	Gold	Solder	Green	Copper Alloy	Polyamide (PA6T) Nylon 6T	UL94 V-0	DE E	1	30 Áin	0.76 Ám	5 A	Board Lock Shielded	Signal and Power	2	9	-55 °C	125 °C	D-Sub	Receptacle Female Sockets	Through Hole	Nickel Plated Steel
EDAC Inc. 628-M09-621-LN1	Housing/Shell (Unthreaded)	Gold	Solder	Blue	Copper Alloy	Polyamide (PA6T) Nylon 6T	UL94 V-0	DE E	1	30 Áin	0.76 Ám	5 A	Shielded	Signal and Power	2	9	-55 °C	125 °C	D-Sub	Receptacle Female Sockets	Through Hole	Nickel Plated Steel
EDAC Inc. 628-M09-621-BN2	Housing/Shell (4-40)	Gold	Solder	Black	Copper Alloy	Polyamide (PA6T) Nylon 6T	UL94 V-0	DE E	1	30 Áin	0.76 Ám	5 A	Shielded	Signal and Power	2	9	-55 °C	125 °C	D-Sub	Receptacle Female Sockets	Through Hole	Nickel Plated Steel
EDAC Inc. 628-M09-223-BT4	4-40	Gold	Solder	Black	Copper Alloy	Polyamide (PA6T) Nylon 6T	UL94 V-0	DE E	1			5 A	Board Lock Shielded	Signal and Power	2	9	-55 °C	125 °C	D-Sub	Receptacle Female Sockets	Through Hole		Flash
EDAC Inc. 628-M09-221-LN2	Housing/Shell (4-40)	Gold	Solder	Blue	Copper Alloy	Polyamide (PA6T) Nylon 6T	UL94 V-0	DE E	1			5 A	Shielded	Signal and Power	2	9	-55 °C	125 °C	D-Sub	Receptacle Female Sockets	Through Hole	Nickel Plated Steel	Flash
