TTEZN10SLBX
ActiveSwitchcraft Inc.

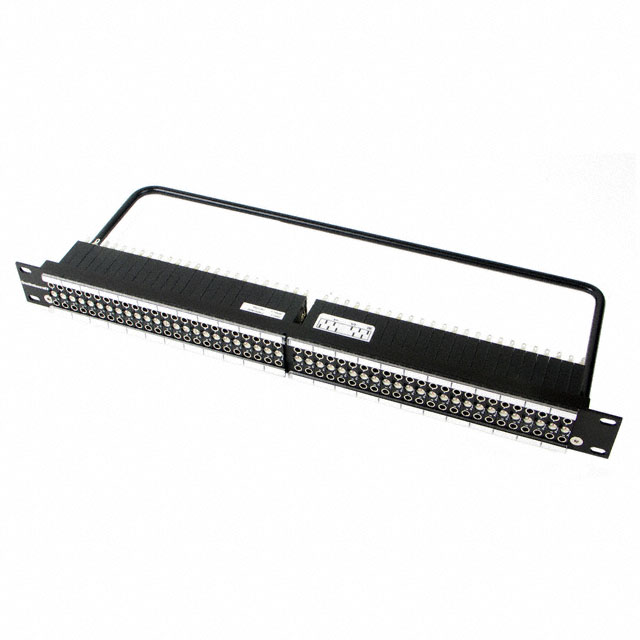

PATCHBAY 1 RACK JACK SOLDER LUG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TTEZN10SLBX
ActiveSwitchcraft Inc.
PATCHBAY 1 RACK JACK SOLDER LUG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TTEZN10SLBX | TTEZN1 Series |
|---|---|---|
| Connector Type | 0.173 in | 0.173 in |
| Connector Type | Phone Jack | Phone Jack |
| Number of Positions | 48 | 48 |
| Number of Rows | 2 | 2 |
| Termination Style | Solder Lug | Connector, Solder Lug |
| Type | Audio Jack Panel | Audio Jack Panel |
TTEZN1 Series
EZNORM JCKFLD 1RU 3
| Part | Type | Connector Type | Connector Type | Number of Rows | Number of Positions | Termination Style |
|---|---|---|---|---|---|---|
Switchcraft Inc. TTEZN10P3PINR | Audio Jack Panel | 0.173 in | Phone Jack | 2 | 48 | Connector |
Switchcraft Inc. TTEZN10SLTX | Audio Jack Panel | 0.173 in | Phone Jack | 2 | 48 | Solder Lug |
Switchcraft Inc. TTEZN10SLBX | Audio Jack Panel | 0.173 in | Phone Jack | 2 | 48 | Solder Lug |
Switchcraft Inc. TTEZN15P3PINR | Audio Jack Panel | 0.173 in | Phone Jack | 2 | 48 | Connector |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 726.09 | |
Description
General part information
TTEZN1 Series
PATCHBAY 1 RACK JACK SOLDER LUG
Documents
Technical documentation and resources
