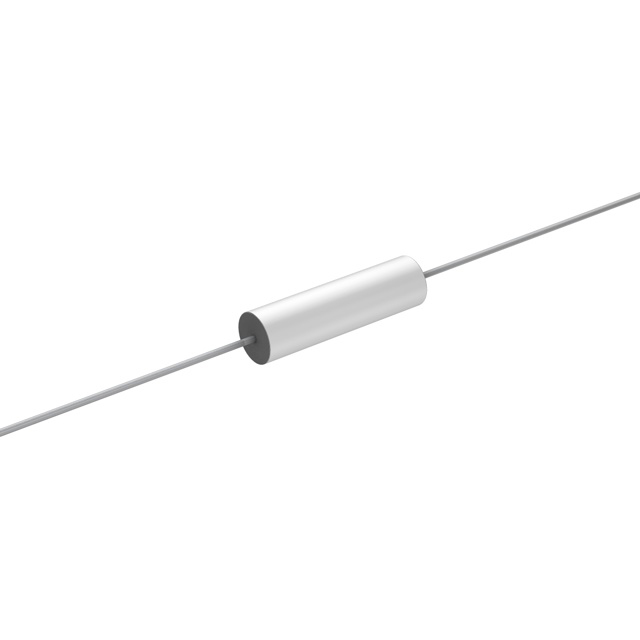

WMF4D1K
ObsoleteCornell Dubilier Knowles
CAP FILM 1000PF 10% 400VDC AXIAL
WMF4D1K
ObsoleteCornell Dubilier Knowles
CAP FILM 1000PF 10% 400VDC AXIAL
Description
General part information
WMF4D1K
1000 pF Film Capacitor 400V Polyester Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | WMF4D1K |
|---|---|
| Applications | General Purpose |
| Capacitance | 1000 pF |
| Dielectric Material | Polyester |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Size / Dimension Diameter | 0.189 in |
| Size / Dimension Length | 0.685 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - DC | 400 V |
