1-103310-0
ActiveTE Connectivity AMP Connectors

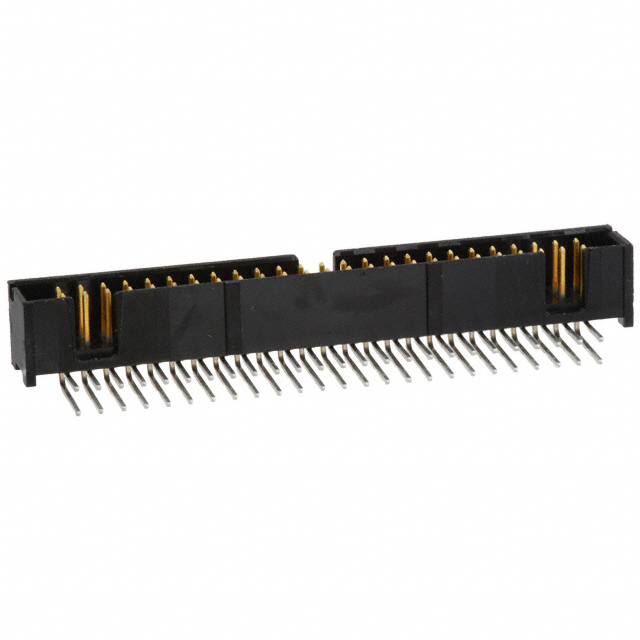

CONN HEADER R/A 50POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-103310-0
ActiveTE Connectivity AMP Connectors
CONN HEADER R/A 50POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-103310-0 | 103310 Series |
|---|---|---|
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold or Gold-Palladium | Gold or Gold-Palladium |
| Contact Finish - Post | Tin-Lead | Tin-Lead |
| Contact Finish Thickness - Mating | 15 µin | 15 µin |
| Contact Finish Thickness - Mating | 0.38 µm | 0.38 µm |
| Contact Finish Thickness - Post | 2.54 µm | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin | 100 µin |
| Contact Length - Mating | 6.1 mm | 6.1 mm |
| Contact Length - Mating [x] | 0.24 in | 0.24 in |
| Contact Length - Post [x] | 0.135 in | 0.135 in |
| Contact Length - Post [x] | 3.43 mm | 3.43 mm |
| Contact Material | Brass | Brass |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 1 A | 1 A |
| Fastening Type | Push-Pull | Push-Pull |
| Features | Keying Slot | Keying Slot |
| Insulation Color | Black | Black |
| Insulation Height | 9.14 mm | 9.14 mm |
| Insulation Height | 0.36 in | 0.36 in |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions | 50 | 10 - 50 |
| Number of Positions | - | 16 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in | 0.1 in |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 3.66 | |
| 35 | $ 3.12 | |||
| 105 | $ 2.95 | |||
103310 Series
CONN HEADER R/A 40POS 2.54MM
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Features | Number of Positions Loaded | Termination | Contact Finish - Mating | Current Rating (Amps) | Material Flammability Rating | Contact Type | Connector Type | Contact Material | Style | Contact Finish - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Shrouding | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Insulation Height | Insulation Height | Fastening Type | Insulation Color | Number of Rows | Mounting Type | Pitch - Mating | Pitch - Mating | Contact Length - Post [x] | Contact Length - Post [x] | Contact Shape | Contact Length - Mating | Contact Length - Mating [x] | Number of Positions | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 103310-8 | 15 µin | 0.38 µm | -65 ░C | 105 ░C | Keying Slot | All | Solder | Gold or Gold-Palladium | 1 A | UL94 V-0 | Male Pin | Header | Brass | Board to Cable/Wire | Tin-Lead | 2.54 µm | 100 µin | Shrouded - 4 Wall | 2.54 mm | 0.1 in | 9.14 mm | 0.36 in | Push-Pull | Black | 2 | Through Hole, Right Angle | 0.1 in | 2.54 mm | 0.135 in | 3.43 mm | Square | 6.1 mm | 0.24 in | 40 | |
TE Connectivity AMP Connectors 103310-1 | 15 µin | 0.38 µm | -65 ░C | 105 ░C | Keying Slot | All | Solder | Gold or Gold-Palladium | 1 A | UL94 V-0 | Male Pin | Header | Brass | Board to Cable/Wire | Tin-Lead | 2.54 µm | 100 µin | Shrouded - 4 Wall | 2.54 mm | 0.1 in | 9.14 mm | 0.36 in | Push-Pull | Black | 2 | Through Hole, Right Angle | 0.1 in | 2.54 mm | 0.135 in | 3.43 mm | Square | 6.1 mm | 0.24 in | 10 | |
TE Connectivity AMP Connectors 103310-7 | 15 µin | 0.38 µm | -65 ░C | 105 ░C | Keying Slot | All | Solder | Gold or Gold-Palladium | 1 A | UL94 V-0 | Male Pin | Header | Brass | Board to Cable/Wire | Tin-Lead | 2.54 µm | 100 µin | Shrouded - 4 Wall | 2.54 mm | 0.1 in | 9.14 mm | 0.36 in | Push-Pull | Black | 2 | Through Hole, Right Angle | 0.1 in | 2.54 mm | 0.135 in | 3.43 mm | Square | 6.1 mm | 0.24 in | 34 | |
TE Connectivity AMP Connectors 103310-6 | 15 µin | 0.38 µm | -65 ░C | 105 ░C | Keying Slot | All | Solder | Gold or Gold-Palladium | 1 A | UL94 V-0 | Male Pin | Header | Brass | Board to Cable/Wire | Tin-Lead | 2.54 µm | 100 µin | Shrouded - 4 Wall | 2.54 mm | 0.1 in | 9.14 mm | 0.36 in | Push-Pull | Black | 2 | Through Hole, Right Angle | 0.1 in | 2.54 mm | 0.135 in | 3.43 mm | Square | 6.1 mm | 0.24 in | 26 | |
TE Connectivity AMP Connectors 1-103310-0 | 15 µin | 0.38 µm | -65 ░C | 105 ░C | Keying Slot | All | Solder | Gold or Gold-Palladium | 1 A | UL94 V-0 | Male Pin | Header | Brass | Board to Cable/Wire | Tin-Lead | 2.54 µm | 100 µin | Shrouded - 4 Wall | 2.54 mm | 0.1 in | 9.14 mm | 0.36 in | Push-Pull | Black | 2 | Through Hole, Right Angle | 0.1 in | 2.54 mm | 0.135 in | 3.43 mm | Square | 6.1 mm | 0.24 in | 50 | |
TE Connectivity AMP Connectors 103310-3 | 15 µin | 0.38 µm | -65 ░C | 105 ░C | Keying Slot | All | Solder | Gold or Gold-Palladium | 1 A | UL94 V-0 | Male Pin | Header | Brass | Board to Cable/Wire | Tin-Lead | 2.54 µm | 100 µin | Shrouded - 4 Wall | 2.54 mm | 0.1 in | 9.14 mm | 0.36 in | Push-Pull | Black | 2 | Through Hole, Right Angle | 0.1 in | 2.54 mm | 0.135 in | 3.43 mm | Square | 6.1 mm | 0.24 in | 16 |
Description
General part information
103310 Series
Connector Header Through Hole, Right Angle 50 position 0.100" (2.54mm)
