Q-0101M0001009i

Active

Amphenol Custom Cable

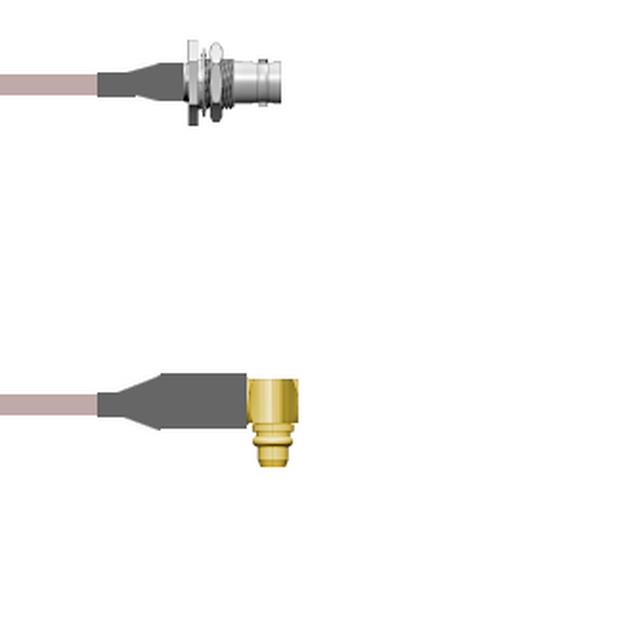

CBL ASSY BNC-MMCX JACK-PLUG 9"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0101M0001009i

Active

Amphenol Custom Cable

CBL ASSY BNC-MMCX JACK-PLUG 9"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	Q-0101M0001009i	Q-0101M0 Series

1st Connector	BNC Jack	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount	Panel Mount
1st Contact Gender	Female	Female
2nd Connector	MMCX Plug, Right Angle	MMCX Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Contact Gender	Male	Male
Cable Type	RG-178	RG-178
Color	Copper	Copper
Features	Shielded	Shielded
Frequency - Max [Max]	4 GHz	4 GHz
Length	9 "	5 - 108 in
Length	228.6 mm	1.5 - 1200 m
Length	-	4 - 9 ft
Length	-	457.2 mm
Length	-	457.2 mm
Overall Impedance	50 Ohms	50 Ohms
Style	BNC to MMCX	BNC to MMCX

Q-0101M0 Series

CBL ASSY BNC-MMCX JACK-PLUG 9'

Part	Color	Features	Cable Type	Overall Impedance	1st Contact Gender	Style	1st Connector	2nd Connector	Frequency - Max [Max]	2nd Connector Mounting Type	2nd Contact Gender	1st Connector Mounting Feature	Length	Length	Length	1st Connector Mounting Type	Length [x]	Length [x]
Amphenol Custom Cable Q-0101M0001108i	Copper	Shielded	RG-178	50 Ohms	Female	BNC to MMCX	BNC Jack	MMCX Plug, Right Angle	4 GHz	Free Hanging (In-Line)	Male	Bulkhead - Front Side Nut	2.7 m	9 ft	108 in	Panel Mount
Amphenol Custom Cable Q-0101M0001036i	Copper	Shielded	RG-178	50 Ohms	Female	BNC to MMCX	BNC Jack	MMCX Plug, Right Angle	4 GHz	Free Hanging (In-Line)	Male	Bulkhead - Front Side Nut	91.44 cm		36 in	Panel Mount
Amphenol Custom Cable Q-0101M0001024i	Copper	Shielded	RG-178	50 Ohms	Female	BNC to MMCX	BNC Jack	MMCX Plug, Right Angle	4 GHz	Free Hanging (In-Line)	Male	Bulkhead - Front Side Nut	609.6 mm		24 "	Panel Mount
Amphenol Custom Cable Q-0101M0001009i	Copper	Shielded	RG-178	50 Ohms	Female	BNC to MMCX	BNC Jack	MMCX Plug, Right Angle	4 GHz	Free Hanging (In-Line)	Male	Bulkhead - Front Side Nut	228.6 mm		9 "	Panel Mount
Amphenol Custom Cable Q-0101M0001018i	Copper	Shielded	RG-178	50 Ohms	Female	BNC to MMCX	BNC Jack	MMCX Plug, Right Angle	4 GHz	Free Hanging (In-Line)	Male	Bulkhead - Front Side Nut				Panel Mount	457.2 mm	457.2 mm
Amphenol Custom Cable Q-0101M0001060i	Copper	Shielded	RG-178	50 Ohms	Female	BNC to MMCX	BNC Jack	MMCX Plug, Right Angle	4 GHz	Free Hanging (In-Line)	Male	Bulkhead - Front Side Nut	1.5 m	5 ft	5 '	Panel Mount
Amphenol Custom Cable Q-0101M0001072i	Copper	Shielded	RG-178	50 Ohms	Female	BNC to MMCX	BNC Jack	MMCX Plug, Right Angle	4 GHz	Free Hanging (In-Line)	Male	Bulkhead - Front Side Nut	1.8 m	6 ft	72 in	Panel Mount
Amphenol Custom Cable Q-0101M00011.5M	Copper	Shielded	RG-178	50 Ohms	Female	BNC to MMCX	BNC Jack	MMCX Plug, Right Angle	4 GHz	Free Hanging (In-Line)	Male	Bulkhead - Front Side Nut	1.5 m	4.9 ft	59.1 in	Panel Mount
Amphenol Custom Cable Q-0101M0001048i	Copper	Shielded	RG-178	50 Ohms	Female	BNC to MMCX	BNC Jack	MMCX Plug, Right Angle	4 GHz	Free Hanging (In-Line)	Male	Bulkhead - Front Side Nut	1200 mm	4 ft	48 in	Panel Mount
Amphenol Custom Cable Q-0101M0001012i	Copper	Shielded	RG-178	50 Ohms	Female	BNC to MMCX	BNC Jack	MMCX Plug, Right Angle	4 GHz	Free Hanging (In-Line)	Male	Bulkhead - Front Side Nut	304.8 mm		12 "	Panel Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 86.27
		25	$ 84.58
		50	$ 82.89
		100	$ 81.20
		250	$ 79.52

Description

General part information

Q-0101M0 Series

Cable Assembly Coaxial BNC to MMCX RG-178 9.000" (228.60mm)
