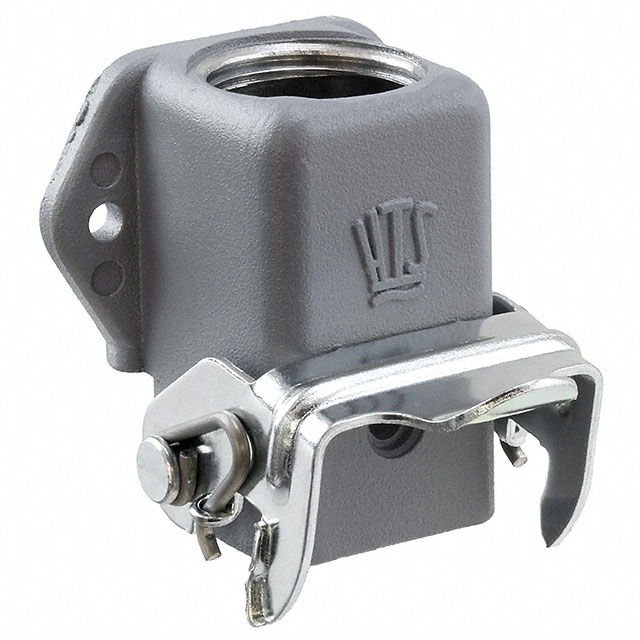

CONN BASE SIDE ENTRY SZ1 M20

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN BASE SIDE ENTRY SZ1 M20

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1106404-3	1106404 Series

Connector Type	Base - Panel Mount 90°	Base - Panel Mount 90°
Housing Color	Gray	Gray
Housing Finish	Powder Coated	Powder Coated
Housing Material	Zinc, Die Cast	Zinc, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom	Locking Clip (1) on Base Bottom
Size	1 Gallon	1 Gallon
Size / Dimension [x]	40 mm	40 mm
Size / Dimension [x]	1.575 in	1.575 in
Size / Dimension [y]	1.102 in	1.102 in
Size / Dimension [y]	28 mm	28 mm
Size / Dimension [z]	25.5 mm	25.5 mm
Size / Dimension [z]	1.004 in	1.004 in
Style	Side Entry	Side Entry
Thread Size	M20	M16, M20

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

CONN BASE SIDE ENTRY SZ1 M16

Part	Ingress Protection	Size	Housing Color	Style	Thread Size	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Housing Finish	Lock Location	Connector Type	Housing Material
TE Connectivity AMP Connectors 1106404-1	IP65 - Dust Tight, Water Resistant	1 Gallon	Gray	Side Entry	M16	40 mm	25.5 mm	1.102 in	1.004 in	28 mm	1.575 in	Powder Coated	Locking Clip (1) on Base Bottom	Base - Panel Mount 90°	Zinc, Die Cast
TE Connectivity AMP Connectors 1106404-3	IP65 - Dust Tight, Water Resistant	1 Gallon	Gray	Side Entry	M20	40 mm	25.5 mm	1.102 in	1.004 in	28 mm	1.575 in	Powder Coated	Locking Clip (1) on Base Bottom	Base - Panel Mount 90°	Zinc, Die Cast

General part information

Base - Panel Mount 90° Connector Side Entry M20 1 IP65 - Dust Tight, Water Resistant
