890-70-030-10-002101

Active

PRECI-DIP SA

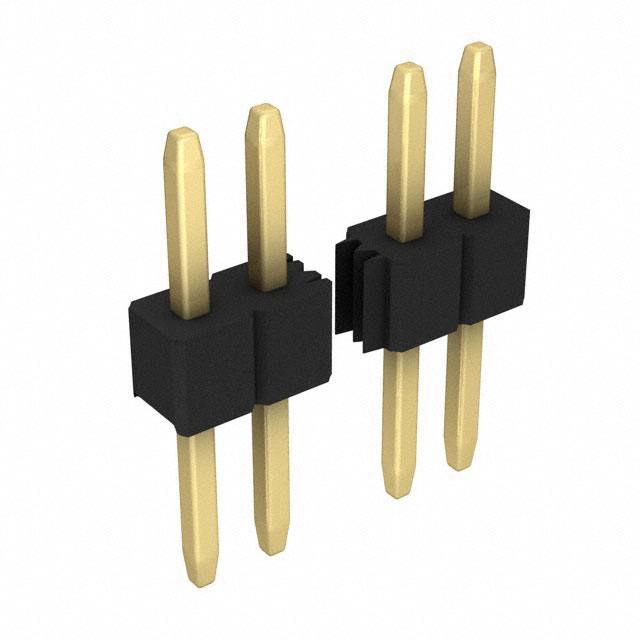

CONN HEADER VERT 30POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

890-70-030-10-002101

Active

PRECI-DIP SA

CONN HEADER VERT 30POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	890-70-030-10-002101

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating	7 mm
Contact Length - Mating	0.276 in
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	12.54 mm
Overall Contact Length	0.494 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Solder
Voltage Rating	150 VDC

890-70 Series

...

Part	Insulation Color	Overall Contact Length	Overall Contact Length	Termination	Shrouding	Contact Finish Thickness - Post	Contact Shape	Current Rating (Amps)	Material Flammability Rating	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Mating	Fastening Type	Contact Material	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Insulation Material	Contact Length - Mating	Contact Length - Mating	Connector Type	Contact Finish - Mating	Contact Finish - Post	Number of Positions	Pitch - Mating	Pitch - Mating	Contact Type	Insulation Height	Insulation Height	Mounting Type
PRECI-DIP SA 890-70-029-10-002101	Black	12.54 mm	0.494 in	Solder	Unshrouded	Flash	Square	3 A	UL94 V-0	All	0.118 in	3 mm	Flash	Push-Pull	Brass	150 VDC	-55 °C	125 °C	1	Glass Filled Nylon Polyamide (PA)	7 mm	0.276 in	Header	Gold	Gold	29	0.1 in	2.54 mm	Male Pin	0.1 in	2.54 mm	Through Hole
PRECI-DIP SA 890-70-023-10-004101	Black	20.44 mm	0.805 "	Solder	Unshrouded	Flash	Square	3 A	UL94 V-0	All	0.118 in	3 mm	Flash	Push-Pull	Brass	150 VDC	-55 °C	125 °C	1	Glass Filled Nylon Polyamide (PA)	14.91 mm	0.587 in	Header	Gold	Gold	23	0.1 in	2.54 mm	Male Pin	0.1 in	2.54 mm	Through Hole
PRECI-DIP SA 890-70-035-10-001101	Black	11.64 mm	0.458 "	Solder	Unshrouded	Flash	Square	3 A	UL94 V-0	All	0.122 "	3.1 mm	Flash	Push-Pull	Brass	150 VDC	-55 °C	125 °C	1	Glass Filled Nylon Polyamide (PA)	6 mm	0.236 in	Header	Gold	Gold	35	0.1 in	2.54 mm	Male Pin	0.1 in	2.54 mm	Through Hole
PRECI-DIP SA 890-70-002-20-002101	Black			Solder	Unshrouded	Flash	Square	3 A	UL94 V-0	All	0.118 in	3 mm	Flash	Push-Pull	Brass	150 VDC	-55 °C	125 °C	1	Glass Filled Nylon Polyamide (PA)	7 mm	0.276 in	Header	Gold	Gold	2	0.1 in	2.54 mm	Male Pin	0.1 in	2.54 mm	Through Hole Right Angle
PRECI-DIP SA 890-70-036-10-001101	Black	11.64 mm	0.458 "	Solder	Unshrouded	Flash	Square	3 A	UL94 V-0	All	0.122 "	3.1 mm	Flash	Push-Pull	Brass	150 VDC	-55 °C	125 °C	1	Glass Filled Nylon Polyamide (PA)	6 mm	0.236 in	Header	Gold	Gold	36	0.1 in	2.54 mm	Male Pin	0.1 in	2.54 mm	Through Hole
PRECI-DIP SA 890-70-031-20-001101	Black			Solder	Unshrouded	Flash	Square	3 A	UL94 V-0	All	0.118 in	3 mm	Flash	Push-Pull	Brass	150 VDC	-55 °C	125 °C	1	Glass Filled Nylon Polyamide (PA)	6 mm	0.236 in	Header	Gold	Gold	31	0.1 in	2.54 mm	Male Pin	0.1 in	2.54 mm	Through Hole Right Angle
PRECI-DIP SA 890-70-018-10-003101	Black	14.04 mm	0.553 in	Solder	Unshrouded	Flash	Square	3 A	UL94 V-0	All	0.118 in	3 mm	Flash	Push-Pull	Brass	150 VDC	-55 °C	125 °C	1	Glass Filled Nylon Polyamide (PA)	8.51 mm	0.335 in	Header	Gold	Gold	18	0.1 in	2.54 mm	Male Pin	0.1 in	2.54 mm	Through Hole
PRECI-DIP SA 890-70-006-10-001101	Black	11.64 mm	0.458 "	Solder	Unshrouded	Flash	Square	3 A	UL94 V-0	All	0.122 "	3.1 mm	Flash	Push-Pull	Brass	150 VDC	-55 °C	125 °C	1	Glass Filled Nylon Polyamide (PA)	6 mm	0.236 in	Header	Gold	Gold	6	0.1 in	2.54 mm	Male Pin	0.1 in	2.54 mm	Through Hole
PRECI-DIP SA 890-70-030-10-002101	Black	12.54 mm	0.494 in	Solder	Unshrouded	Flash	Square	3 A	UL94 V-0	All	0.118 in	3 mm	Flash	Push-Pull	Brass	150 VDC	-55 °C	125 °C	1	Glass Filled Nylon Polyamide (PA)	7 mm	0.276 in	Header	Gold	Gold	30	0.1 in	2.54 mm	Male Pin	0.1 in	2.54 mm	Through Hole
PRECI-DIP SA 890-70-036-20-002101	Black			Solder	Unshrouded	Flash	Square	3 A	UL94 V-0	All	0.118 in	3 mm	Flash	Push-Pull	Brass	150 VDC	-55 °C	125 °C	1	Glass Filled Nylon Polyamide (PA)	7 mm	0.276 in	Header	Gold	Gold	36	0.1 in	2.54 mm	Male Pin	0.1 in	2.54 mm	Through Hole Right Angle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	630	$ 1.11

Description

General part information

890-70 Series

Connector Header Through Hole 30 position 0.100" (2.54mm)
