BK/AGC-V-1-1/2

Obsolete

Eaton - Electronics Division

FUSE GLASS 1.5A 250VAC 3AB 3AG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

AGC Series

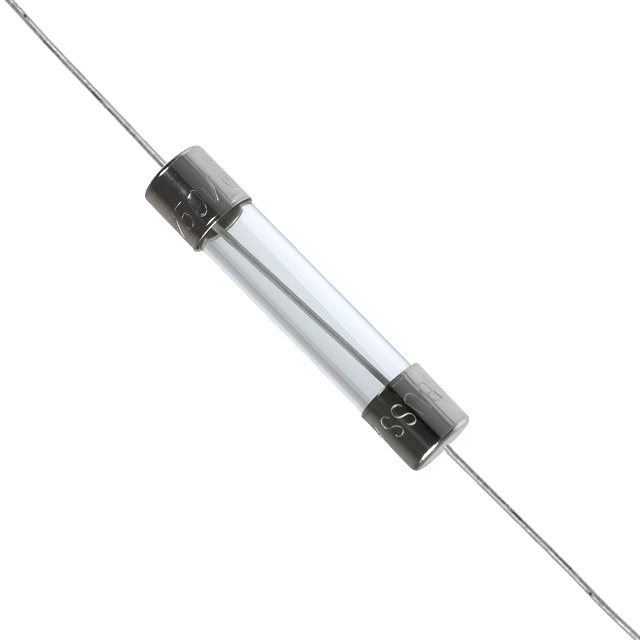

1.5 A 250 V AC DC Fuse Cartridge, Glass Through Hole 3AB, 3AG, 1/4" x 1-1/4" (Axial)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BK/AGC-V-1-1/2	AGC Series

Approval Agency	CSA, UL	CSA, UL, UR
Breaking Capacity @ Rated Voltage	100 A	1 - 200 A
Current Rating (Amps)	1.5 A	0.2 - 800 mA
DC Cold Resistance	0.077 Ohms	0.0016 - 45 Ohms
Melting I˛t	-	0.000181 - 7350
Melting I²t	9.023	0.001 - 11360 I²t
Mounting Type	Through Hole	Requires Holder, Through Hole
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	3AG, 3AB	3AB, 3AG
Package / Case [x]	1/4	1/4
Package / Case [y]	1-1/4	1-1/4
Response Time	Fast Blow	Fast Blow
Size / Dimension [diameter]	0.266 in	0.25 - 0.266 in
Size / Dimension [diameter]	6.76 mm	6.35 - 6.76 mm
Size / Dimension [x]	1.292 "	1.25 - 1.292 "
Size / Dimension [x]	32.82 mm	31.75 - 32.82 mm
Voltage Rating - AC	250 V	32 - 250 V
Voltage Rating - DC	-	250 V

AGC Series

FUSE GLASS 31MA 250VAC/VDC 3AB

...

Part	Response Time	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Approval Agency	Voltage Rating - DC	Current Rating (Amps)	Package / Case	Package / Case [y]	Package / Case [x]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Voltage Rating - AC	DC Cold Resistance	Breaking Capacity @ Rated Voltage	Melting I²t	Melting I˛t
Eaton - Electronics Division AGC-1/32	Fast Blow	-55 °C	125 °C	Requires Holder	CSA, UL	250 V	31 mA	3AB, 3AG	1-1/4	1/4	31.75 mm	0.25 in	6.35 mm	1.25 "	250 V
Eaton - Electronics Division BK/AGC-V-7-R	Fast Blow	-55 °C	125 °C	Through Hole	CSA, UL		7 A	3AB, 3AG	1-1/4	1/4	32.82 mm	0.266 in	6.76 mm	1.292 "	250 V	0.012 Ohms	200 A	195.02 I²t
Eaton - Electronics Division BK-AGC-B-15-R	Fast Blow	-55 °C	125 °C	Requires Holder	CSA, UR		15 A	3AB, 3AG	1-1/4	1/4	31.75 mm	0.25 in	6.35 mm	1.25 "	32 V	0.005 Ohms	1 kA	807.75
Eaton - Electronics Division BK/AGC-40-R	Fast Blow	-55 °C	125 °C	Requires Holder	CSA, UL		40 A	3AB, 3AG	1-1/4	1/4	31.75 mm	0.25 in	6.35 mm	1.25 "	32 V	0.0016 Ohms	1 kA	11360
Eaton - Electronics Division AGC-2-R	Fast Blow	-55 °C	125 °C	Requires Holder	CSA, UL		2 A	3AB, 3AG	1-1/4	1/4	31.75 mm	0.25 in	6.35 mm	1.25 "	250 V	0.063 Ohms	100 A	17.52
Eaton - Electronics Division BK/AGC-V-7-1/2R	Fast Blow	-55 °C	125 °C	Through Hole	CSA, UL		7.5 A	3AB, 3AG	1-1/4	1/4	32.82 mm	0.266 in	6.76 mm	1.292 "	250 V	0.012 Ohms	200 A	216
Eaton - Electronics Division AGC-V-1-6/10-R	Fast Blow	-55 °C	125 °C	Through Hole			1.6 A	3AB, 3AG	1-1/4	1/4	32.82 mm	0.266 in	6.76 mm	1.292 "	250 V
Eaton - Electronics Division AGC-50	Fast Blow	-55 °C	125 °C	Requires Holder			50 A	3AB, 3AG	1-1/4	1/4	31.75 mm	0.25 in	6.35 mm	1.25 "	32 V
Eaton - Electronics Division BK/AGC-1-3/4-R	Fast Blow	-55 °C	125 °C	Requires Holder			1.75 A	3AB, 3AG	1-1/4	1/4	31.75 mm	0.25 in	6.35 mm	1.25 "	250 V
Eaton - Electronics Division BK/AGC-B-1/8	Fast Blow	-55 °C	125 °C	Requires Holder	CSA, UL		125 mA	3AB, 3AG	1-1/4	1/4	31.75 mm	0.25 in	6.35 mm	1.25 "	250 V	10.825 Ohms	35 A		0.002
