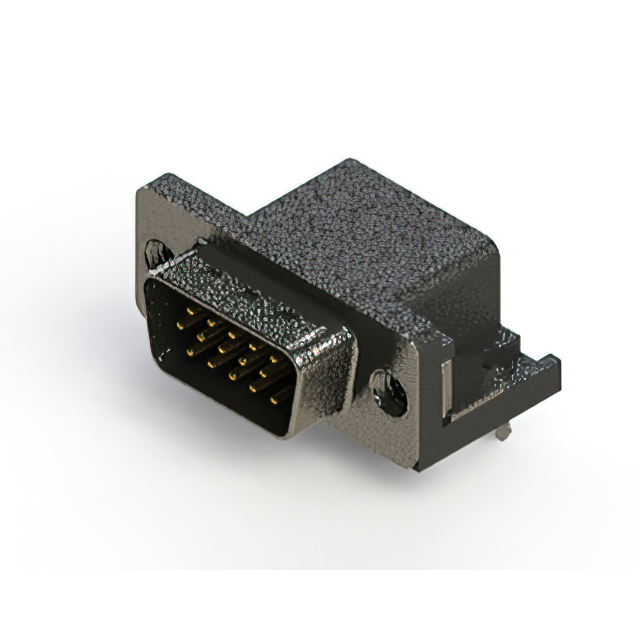

633-015-663-532

Active

EDAC Inc.

633 SERIES RIGHT ANGLE D-SUB PLU

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

633-015-663-532

Active

EDAC Inc.

633 SERIES RIGHT ANGLE D-SUB PLU

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	633-015-663-532

Backset Spacing	8.89 mm
Backset Spacing	0.35 in
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Board Lock, Mounting Brackets, Grounding Indents, Shielded
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	15
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Shell Size, Connector Layout [custom]	High Density
Termination	Solder

633-015 Series

Part	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Termination	Contact Type	Number of Positions	Features	Current Rating (Amps)	Backset Spacing	Backset Spacing	Material Flammability Rating	Connector Style	Number of Rows	Flange Feature	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Mounting Type	Shell Material, Finish	Connector Type	Contact Finish Thickness
EDAC Inc. 633-015-363-553	15 µin	0.38 µm	Copper Alloy	Solder	Signal	15	Board Lock Grounding Indents Mounting Brackets Shielded	3 A	8.89 mm	0.35 in	UL94 V-0	D-Sub High Density	3	Female Screwlock (4-40) Mating Side	DE E	1	High Density	Polyester Thermoplastic	-55 °C	125 °C	Gold	Board Edge Right Angle Through Hole	Nickel Plated Steel	Male Pins Plug
EDAC Inc. 633-015-363-515	15 µin	0.38 µm	Copper Alloy	Solder	Signal	15	Grounding Indents Mounting Brackets Shielded	3 A	8.89 mm	0.35 in	UL94 V-0	D-Sub High Density	3	Housing/Shell (M3)	DE E	1	High Density	Polyester Thermoplastic	-55 °C	125 °C	Gold	Board Edge Right Angle Through Hole	Nickel Plated Steel	Male Pins Plug
EDAC Inc. 633-015-363-043	15 µin	0.38 µm	Copper Alloy	Solder	Signal	15	Board Lock Grounding Indents Mounting Brackets Shielded	3 A	8.89 mm	0.35 in	UL94 V-0	D-Sub High Density	3	Female Screwlock (4-40) Mating Side	DE E	1	High Density	Polyester Thermoplastic	-55 °C	85 °C	Gold	Board Edge Right Angle Through Hole	Nickel Plated Steel	Male Pins Plug
EDAC Inc. 633-015-363-013	15 µin	0.38 µm	Copper Alloy	Solder	Signal	15	Grounding Indents Mounting Brackets Shielded	3 A	8.89 mm	0.35 in	UL94 V-0	D-Sub High Density	3	Female Screwlock (4-40) Mating Side	DE E	1	High Density	Polyester Thermoplastic	-55 °C	85 °C	Gold	Board Edge Right Angle Through Hole	Nickel Plated Steel	Male Pins Plug
EDAC Inc. 633-015-663-533	30 Áin	0.76 Ám	Copper Alloy	Solder	Signal	15	Board Lock Grounding Indents Mounting Brackets Shielded	3 A	8.89 mm	0.35 in	UL94 V-0	D-Sub High Density	3	Female Screwlock (4-40) Mating Side	DE E	1	High Density	Polyester Thermoplastic	-55 °C	125 °C	Gold	Board Edge Right Angle Through Hole	Nickel Plated Steel	Male Pins Plug
EDAC Inc. 633-015-263-045			Copper Alloy	Solder	Signal	15	Board Lock Grounding Indents Mounting Brackets Shielded	3 A	8.89 mm	0.35 in	UL94 V-0	D-Sub High Density	3	Housing/Shell (M3)	DE E	1	High Density	Polyester Thermoplastic	-55 °C	85 °C	Gold	Board Edge Right Angle Through Hole	Nickel Plated Steel	Male Pins Plug	Flash
EDAC Inc. 633-015-663-532	30 Áin	0.76 Ám	Copper Alloy	Solder	Signal	15	Board Lock Grounding Indents Mounting Brackets Shielded	3 A	8.89 mm	0.35 in	UL94 V-0	D-Sub High Density	3	Housing/Shell (4-40)	DE E	1	High Density	Polyester Thermoplastic	-55 °C	125 °C	Gold	Board Edge Right Angle Through Hole	Nickel Plated Steel	Male Pins Plug
EDAC Inc. 633-015-363-015	15 µin	0.38 µm	Copper Alloy	Solder	Signal	15	Grounding Indents Mounting Brackets Shielded	3 A	8.89 mm	0.35 in	UL94 V-0	D-Sub High Density	3	Housing/Shell (M3)	DE E	1	High Density	Polyester Thermoplastic	-55 °C	85 °C	Gold	Board Edge Right Angle Through Hole	Nickel Plated Steel	Male Pins Plug
EDAC Inc. 633-015-263-011			Copper Alloy	Solder	Signal	15	Grounding Indents Mounting Brackets Shielded	3 A	8.89 mm	0.35 in	UL94 V-0	D-Sub High Density	3	Housing/Shell (Unthreaded)	DE E	1	High Density	Polyester Thermoplastic	-55 °C	85 °C	Gold	Board Edge Right Angle Through Hole	Nickel Plated Steel	Male Pins Plug	Flash
EDAC Inc. 633-015-363-530	15 µin	0.38 µm	Copper Alloy	Solder	Signal	15	Board Lock Grounding Indents Mounting Brackets Shielded	3 A	8.89 mm	0.35 in	UL94 V-0	D-Sub High Density	3	4-40	DE E	1	High Density	Polyester Thermoplastic	-55 °C	125 °C	Gold	Board Edge Right Angle Through Hole	Nickel Plated Steel	Male Pins Plug

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 5.47

Description

General part information

633-015 Series

15 Position D-Sub, High Density Plug, Male Pins Connector
