1218124-3

Active

TE Connectivity Aerospace, Defense and Marine

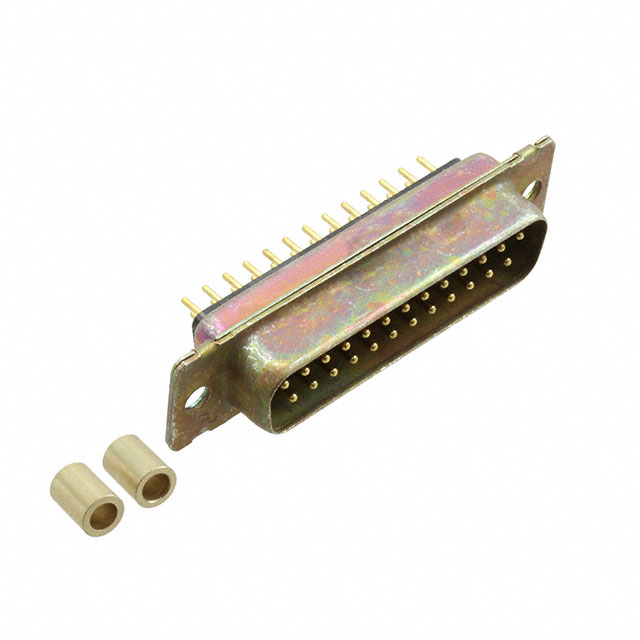

CONN D-SUB PLUG 25POS VERT SLDR

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

CONN D-SUB PLUG 25POS VERT SLDR

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1218124-3	1218124 Series

Color	Black	Black
Connector Style	D-Sub	D-Sub
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish	Gold	Gold
Contact Finish Thickness	50 µin	50 µin
Contact Finish Thickness	1.27 µm	1.27 µm
Contact Material	Brass	Brass
Contact Type	Signal	Signal
Current Rating (Amps)	5 A	5 A
Flange Feature	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)
Mounting Type	Through Hole	Through Hole
Number of Positions	-	37
Number of Rows	2	2
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Shell Material, Finish [custom]	Steel	Steel
Shell Material, Finish [custom]	Cadmium Plated	Cadmium Plated
Shell Size, Connector Layout	-	4 (DC, C)
Shell Size, Connector Layout [custom]	DB, B	DB, B
Shell Size, Connector Layout [custom]	3	3
Termination	Solder	Solder

CONN D-SUB PLUG 37POS VERT SLDR

Part	Shell Size, Connector Layout	Shell Material, Finish [custom]	Shell Material, Finish [custom]	Mounting Type	Color	Connector Style	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Flange Feature	Contact Material	Current Rating (Amps)	Termination	Contact Finish	Number of Rows	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]
TE Connectivity Aerospace, Defense and Marine 1218124-4	4 (DC, C)	Steel	Cadmium Plated	Through Hole	Black	D-Sub	Signal	50 µin	1.27 µm	37	Housing/Shell (Unthreaded)	Brass	5 A	Solder	Gold	2	Male Pins, Plug	-55 °C	125 °C
TE Connectivity Aerospace, Defense and Marine 1218124-3		Steel	Cadmium Plated	Through Hole	Black	D-Sub	Signal	50 µin	1.27 µm		Housing/Shell (Unthreaded)	Brass	5 A	Solder	Gold	2	Male Pins, Plug	-55 °C	125 °C	B, DB	3
