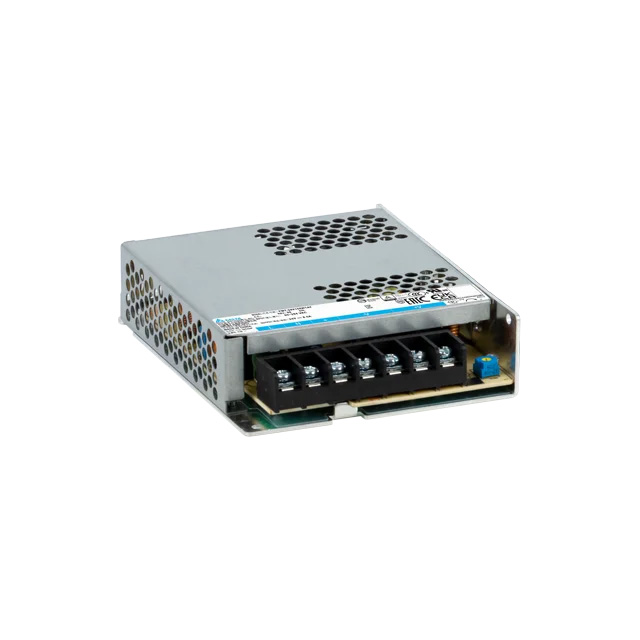

PMR-12V150W1AT
ActiveDelta Electronics
150W/12V - TERMINAL BLOCK - PFC
PMR-12V150W1AT
ActiveDelta Electronics
150W/12V - TERMINAL BLOCK - PFC
Description
General part information
PMR-12V150W1AT
Enclosed AC DC Converters 1 Output 12V 90 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | PMR-12V150W1AT |
|---|---|
| Applications | ITE (Commercial), Household Appliances |
| Approval Agency | TUV, cURus, CCC, CB, CE, KC, EAC, UKCA |
| Current - Output 1 | 12.5 A |
| Efficiency | 93 % |
| Features | PFC, Adjustable Output, Universal Input |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -30 °C |
| Power (Watts) | 150 W |
| Size / Dimension Height | 1.18 in |
| Size / Dimension Length | 5.08 in |
| Size / Dimension Width | 3.82 in |
| Standard Number | 60335-1, 62368-1 |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Isolation | 4000 Vpk |
| Voltage - Output 1 | 12 V |
