B82144A2685J000
ActiveEPCOS - TDK Electronics
FIXED IND 6.8MH 80MA 30 OHM TH
B82144A2685J000
ActiveEPCOS - TDK Electronics
FIXED IND 6.8MH 80MA 30 OHM TH
Description
General part information
B82144A2685J000

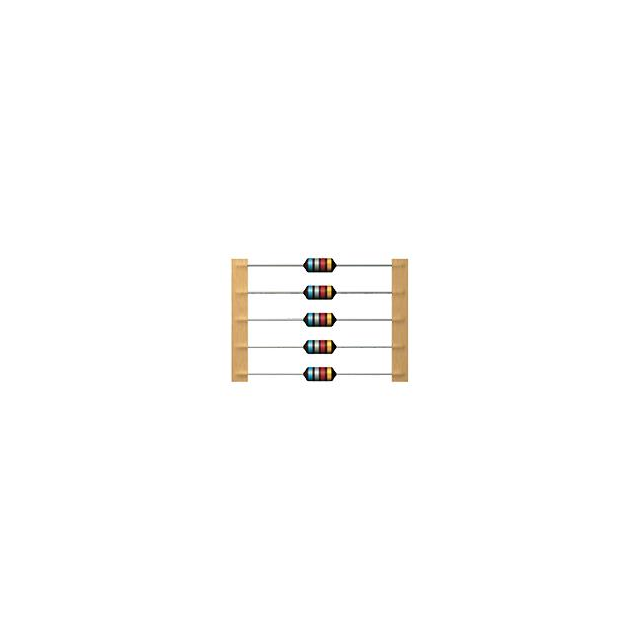

6.8 mH Unshielded Drum Core, Wirewound Inductor 80 mA 30Ohm Max Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | B82144A2685J000 |
|---|---|
| Current Rating | 0.08 A |
| DC Resistance (DCR) (Max) | 30 Ohm |
| Frequency - Self Resonant | 400 kHz |
| Inductance | 6.8 mH |
| Inductance Frequency - Test | 10 kHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Q | 60 |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.205 in |
| Size / Dimension Length | 0.472 in |
| Tolerance | 5 % |
| Type | Drum Core, Wirewound |
