Description
General part information

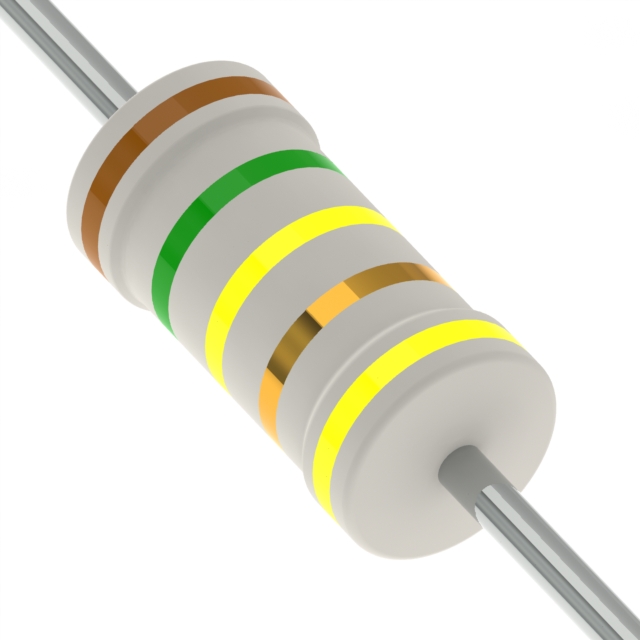

HHV3SSJR-73-150K
150 kOhms ±5% 3W Through Hole Resistor Axial Flame Retardant Coating, High Voltage, Safety Metal Film
Technical Specifications
Parameters and characteristics for this part
| Specification | HHV3SSJR-73-150K |
|---|---|
| Composition | Metal Film |
| Features | Safety, Flame Retardant Coating, High Voltage |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 3 W |
| Resistance | 150 kOhm |
| Size / Dimension Diameter | 0.197 in |
| Size / Dimension Length | 0.61 in |
| Temperature Coefficient | 200 ppm/°C |
| Tolerance | 5 % |
