MM3Z6V2-AQ
ActiveDiotec Semiconductor

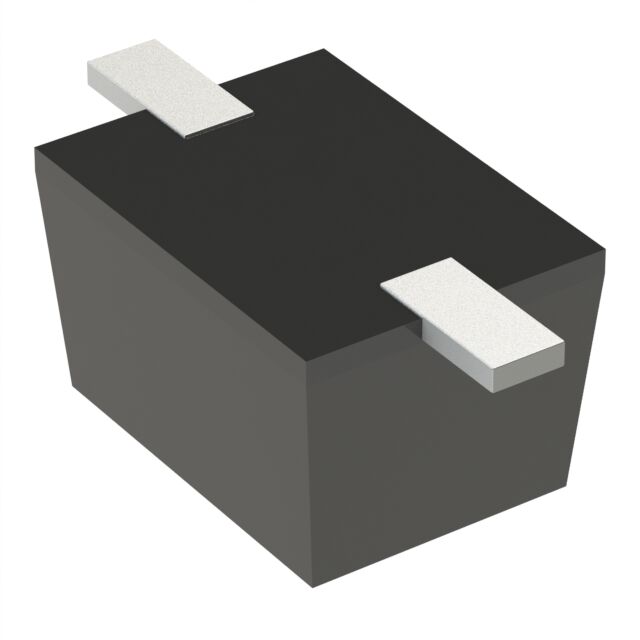

DIODE ZENER 6.2V 300MW SOD323F
MM3Z6V2-AQ
ActiveDiotec Semiconductor
DIODE ZENER 6.2V 300MW SOD323F
Description
General part information
MM3Z6V2-AQ
Zener Diode 6.2 V 300 mW ±5% Surface Mount SOD-323F
Technical Specifications
Parameters and characteristics for this part
| Specification | MM3Z6V2-AQ |
|---|---|
| Current - Reverse Leakage | 1 µA |
| Grade | Automotive |
| Impedance (Max) (Zzt) | 10 Ohms |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -50 °C |
| Package / Case | SOD-323F, SC-90 |
| Package Name | SOD-323F |
| Power - Max | 300 mW |
| Qualification | AEC-Q101 |
| Tolerance | 5 % |
| Voltage - Forward (Vf) (Max) | 1 V |
| Voltage - Zener (Nom) (Vz) | 6.2 V |
