662-015-664-007

Active

EDAC Inc.

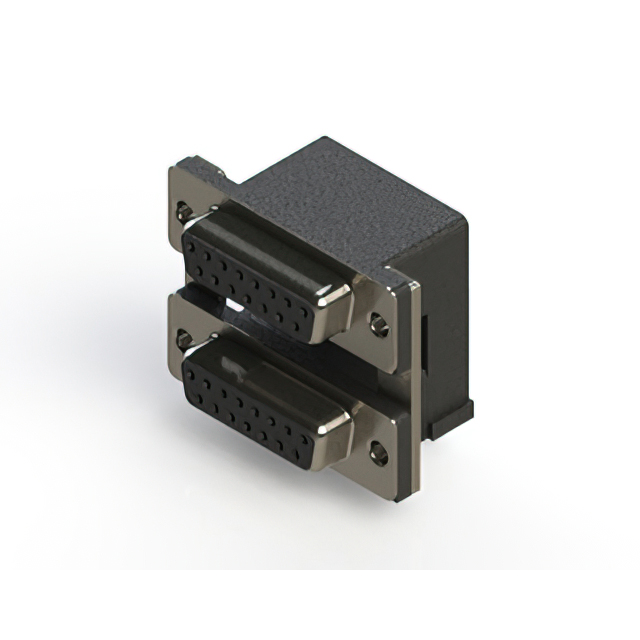

RIGHT-ANGLE DUAL PORT D-SUB CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

662-015-664-007

Active

EDAC Inc.

RIGHT-ANGLE DUAL PORT D-SUB CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	662-015-664-007

Backset Spacing	8.08 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Sub - Stacked
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Shielded, Mounting Brackets
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	2
Shell Size, Connector Layout [custom]	2
Termination	Solder

662-015 Series

...

Part	Flange Feature	Backset Spacing	Backset Spacing	Contact Finish	Mounting Type	Material Flammability Rating	Dielectric Material	Color	Current Rating (Amps)	Termination	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Connector Style	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Material, Finish	Features	Number of Positions	Connector Type	Contact Finish Thickness
EDAC Inc. 662-015-364-005	Housing/Shell (4-40)	8.08 mm	0.318 "	Gold	Through Hole Right Angle	UL94 V-0	Polyester Thermoplastic	Black	3 A	Solder	2	85 °C	-55 °C	Signal	15 µin	0.38 µm	D-Sub - Stacked	2	2	Nickel Plated Steel	Mounting Brackets Shielded	15	Receptacle Female Sockets
EDAC Inc. 662-015-264-009	Female Screwlock (4-40) Mating Side	8.08 mm	0.318 "	Gold	Through Hole Right Angle	UL94 V-0	Polyester Thermoplastic	Black	3 A	Solder	2	85 °C	-55 °C	Signal			D-Sub - Stacked	2	2	Nickel Plated Steel	Mounting Brackets Shielded	15	Receptacle Female Sockets	Flash
EDAC Inc. 662-015-364-030	Housing/Shell (Unthreaded)	8.08 mm	0.318 "	Gold	Through Hole Right Angle	UL94 V-0	Polyester Thermoplastic	Black	3 A	Solder	2	85 °C	-55 °C	Signal	15 µin	0.38 µm	D-Sub - Stacked	2	2	Nickel Plated Steel	Board Lock Mounting Brackets Shielded	15	Receptacle Female Sockets
EDAC Inc. 662-015-364-00C	Housing/Shell (M3)	8.08 mm	0.318 "	Gold	Through Hole Right Angle	UL94 V-0	Polyester Thermoplastic	Black	3 A	Solder	2	85 °C	-55 °C	Signal	15 µin	0.38 µm	D-Sub - Stacked	2	2	Nickel Plated Steel	Mounting Brackets Shielded	15	Receptacle Female Sockets
EDAC Inc. 662-015-664-007	Housing/Shell (Unthreaded)	8.08 mm	0.318 "	Gold	Through Hole Right Angle	UL94 V-0	Polyester Thermoplastic	Black	3 A	Solder	2	85 °C	-55 °C	Signal	30 Áin	0.76 Ám	D-Sub - Stacked	2	2	Nickel Plated Steel	Mounting Brackets Shielded	15	Receptacle Female Sockets
EDAC Inc. 662-015-264-055	Housing/Shell (4-40)	8.08 mm	0.318 "	Gold	Through Hole Right Angle	UL94 V-0	Polyester Thermoplastic	Black	3 A	Solder	2	85 °C	-55 °C	Signal			D-Sub - Stacked	2	2	Nickel Plated Steel	Mounting Brackets Shielded	15	Receptacle Female Sockets	Flash
EDAC Inc. 662-015-264-036	Female Screwlock (4-40) Mating Side	8.08 mm	0.318 "	Gold	Through Hole Right Angle	UL94 V-0	Polyester Thermoplastic	Black	3 A	Solder	2	85 °C	-55 °C	Signal			D-Sub - Stacked	2	2	Nickel Plated Steel	Board Lock Mounting Brackets Shielded	15	Receptacle Female Sockets	Flash
EDAC Inc. 662-015-364-041	Housing/Shell (M3)	8.08 mm	0.318 "	Gold	Through Hole Right Angle	UL94 V-0	Polyester Thermoplastic	Black	3 A	Solder	2	85 °C	-55 °C	Signal	15 µin	0.38 µm	D-Sub - Stacked	2	2	Nickel Plated Steel	Board Lock Mounting Brackets Shielded	15	Receptacle Female Sockets
EDAC Inc. 662-015-664-048	Housing/Shell (4-40)	8.08 mm	0.318 "	Gold	Through Hole Right Angle	UL94 V-0	Polyester Thermoplastic	Black	3 A	Solder	2	85 °C	-55 °C	Signal	30 Áin	0.76 Ám	D-Sub - Stacked	2	2	Nickel Plated Steel	Board Lock Mounting Brackets Shielded	15	Receptacle Female Sockets
EDAC Inc. 662-015-364-042	Housing/Shell (4-40)	8.08 mm	0.318 "	Gold	Through Hole Right Angle	UL94 V-0	Polyester Thermoplastic	Black	3 A	Solder	2	85 °C	-55 °C	Signal	15 µin	0.38 µm	D-Sub - Stacked	2	2	Nickel Plated Steel	Board Lock Mounting Brackets Shielded	15	Receptacle Female Sockets

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 8.31
Newark	Each	100	$ 15.32
		250	$ 14.77
		500	$ 13.95

Description

General part information

662-015 Series

15, 15 Position D-Sub - Stacked Receptacle, Female Sockets Connector
