Description
General part information

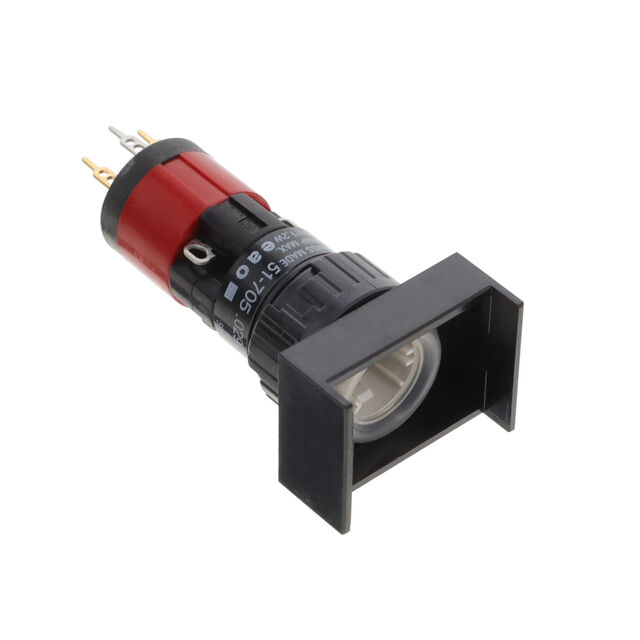

51-705.0292
Pushbutton Switch DPST-NO/NC Standard, Illuminated Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | 51-705.0292 |
|---|---|
| Actuator Type | Rectangular, Button (Not Included) |
| Circuit | DPST-NO/NC |
| Current Rating | 2 A, 3 A |
| Electrical Life (Cycles) | 50000 |
| Ingress Protection Description | Dust Tight, Water Resistant |
| Ingress Protection IP Rating | IP65 |
| Mechanical Life (Cycles) | 2000000 Cycles |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -25 °C |
| Panel Cutout Diameter | 16.2 mm |
| Panel Cutout Shape | Circular |
| Switch Function | On-Mom, Off-Mom |
| Termination Style | Solder Lug, PC Pin |
| Type | Standard, Illuminated |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 24 V |
