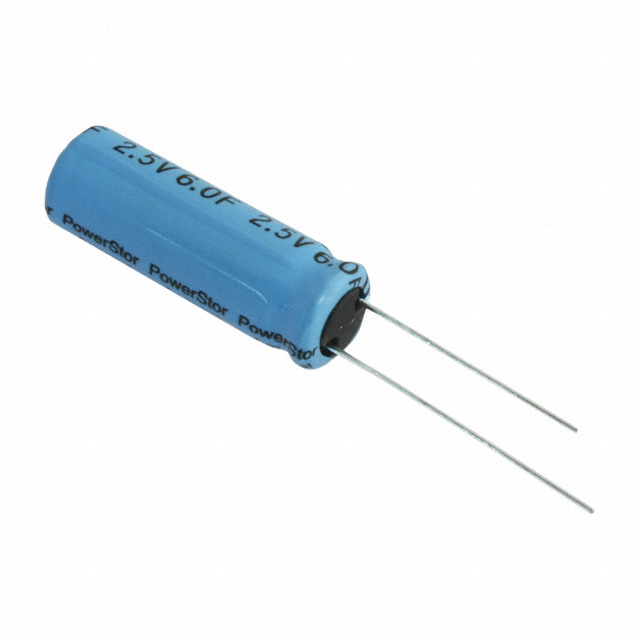

M1030-2R5605-R
ActiveEaton - Electronics Division
CAP 6F -20% +80% 2.5V T/H
M1030-2R5605-R
ActiveEaton - Electronics Division
CAP 6F -20% +80% 2.5V T/H
Description
General part information
M1030-2R5605-R
6 F (EDLC) Supercapacitor 2.5 V Radial, Can 35mOhm @ 100Hz 1000 Hrs @ 60°C
Technical Specifications
Parameters and characteristics for this part
| Specification | M1030-2R5605-R |
|---|---|
| Capacitance | 6 F |
| ESR (Equivalent Series Resistance) | 35 mOhm |
| Height - Seated (Max) | 1.24 in |
| Lead Spacing | 0.197 in |
| Lifetime | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Size / Dimension Diameter | 0.413 in |
| Termination | PC Pins |
| Tolerance (Negative) | 20 % |
| Tolerance (Positive) | 80 % |
| Voltage - Rated | 2.5 V |
