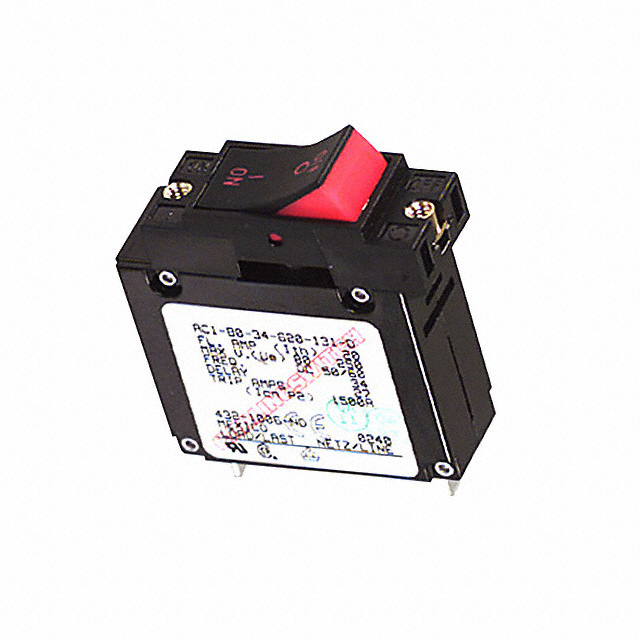

AC1-B0-34-620-131-D

Active

Carling Technologies

CIR BRKR 20A 277VAC 80VDC

Search across all available documentation for this part.

Active

Carling Technologies

CIR BRKR 20A 277VAC 80VDC

Technical Specifications

Parameters and characteristics commom to parts in this series

CIR BRKR 20A 277VAC 80VDC

Part	Voltage Rating - DC	Breaker Type	Current Rating (Amps)	Actuator Type	Number of Poles	Voltage Rating - AC	Approval Agency	Illumination
Carling Technologies AC1-B0-34-620-131-D	80 V	Magnetic (Hydraulic Delay)	20 A	Rocker	1	277 V	CSA, UL, VDE	None
Carling Technologies AC1-B0-34-610-131-D	80 V	Magnetic (Hydraulic Delay)	10 A	Rocker	1	277 V	CSA, UL, VDE	None

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	4	$ 55.64

General part information

Circuit Breaker Magnetic (Hydraulic Delay) 20A 277 V AC 80 V DC Rocker Panel Mount
