Description
General part information
0806KTP410

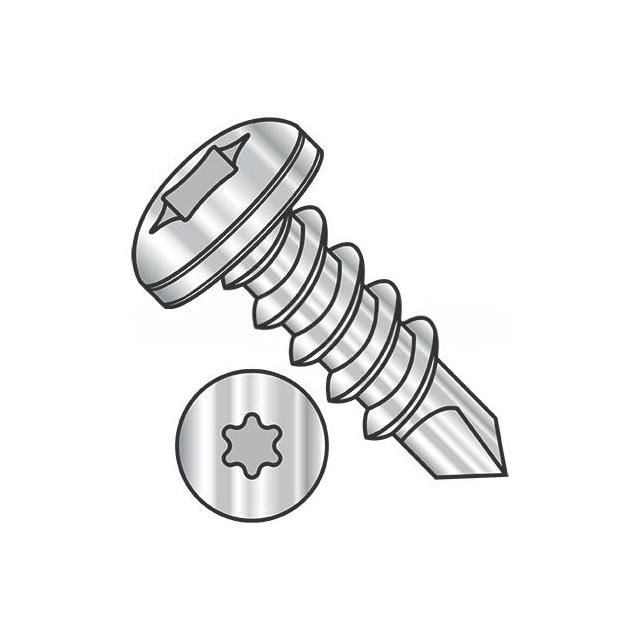

#8-18 Pan Head Self-Drilling Screw 6-Lobe Drive Stainless Steel
Technical Specifications
Parameters and characteristics for this part
| Specification | 0806KTP410 |
|---|---|
| Drive Type | 6-Lobe |
| Features | Standard |
| Head Diameter | 0.314 in |
| Head Height | 0.11 in |
| Length - Below Head | 0.375 in |
| Length - Overall | 0.485 in |
| Material | Stainless Steel |
| Plating | Plain |
| Screw Head Type | Pan Head |
| Thread Size (Max) | 18 mm |
| Thread Size (Min) | 8 mm |
| Type | Self-Drilling Screw |
