1909870

Active

Phoenix Contact

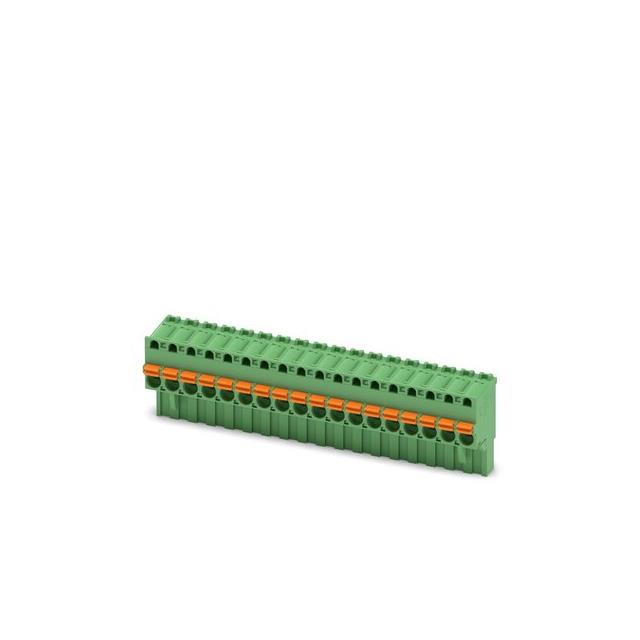

PLUGGABLE TERMINAL BLOCKS 18 POS 5MM PITCH PLUG 24-12AWG SPRING

Search across all available documentation for this part.

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 18 POS 5MM PITCH PLUG 24-12AWG SPRING

Technical Specifications

Parameters and characteristics for this part

Specification	1909870

Color	Green
Contact Mating Finish	Tin
Current - IEC	12 A
Current - UL	10 A
Housing Material	Polyamide (PA), Nylon
Insulation Height	16.8 mm
Insulation Height	0.661 in
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	18
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	18
Termination Style	Push-In Spring, Screwless - Leg Spring
Type	Plug, Female Sockets
Voltage - IEC	630 V
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	26 AWG
Wire Gauge or Range - AWG [Min]	12 AWG
Wire Gauge or Range - mm² [Max]	2.5 mm²
Wire Gauge or Range - mm² [Min]	0.2 mm²
Wire Strip Length	10 mm

Pluggable Terminal Blocks 18 Pos 5mm pitch Plug 24-12AWG Spring

Part	Insulation Height	Insulation Height	Voltage - IEC	Current - UL	Material Flammability Rating	Housing Material	Current - IEC	Voltage - UL	Number of Levels	Contact Mating Finish	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Termination Style	Mounting Type	Color	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Wire Strip Length	Pitch [x]	Pitch [x]	Type	Positions Per Level	Number of Positions
Phoenix Contact 1909870	16.8 mm	0.661 in	630 V	10 A	UL94 V-0	Polyamide (PA), Nylon	12 A	300 V	1	Tin	12 AWG	26 AWG	Push-In Spring, Screwless - Leg Spring	Free Hanging (In-Line)	Green	0.2 mm²	2.5 mm²	10 mm	5 mm	0.197 in	Plug, Female Sockets	18	18

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 19.26
Sager	N/A	50	$ 21.86

General part information

Pluggable Terminal Blocks 18 Pos 5mm pitch Plug 24-12AWG Spring
