Cable Assemblies

0151661059

Active

CABLE FFC/FPC 35POS 0.5MM 4"

Cable Assemblies

Active

CABLE FFC/FPC 35POS 0.5MM 4"

Technical Specifications

Parameters and characteristics for this part

Specification	0151661059

Cable Type	FPC, FFC
Length	4 in
Length - Exposed Ends	0.157 in
Number of Conductors	35
Pitch	0.02 in
Termination Style	Backers on Both Sides, Top on Both Sides

...

Part	Number of Conductors	Length - Exposed Ends	Termination Style	Length	Pitch	Cable Type

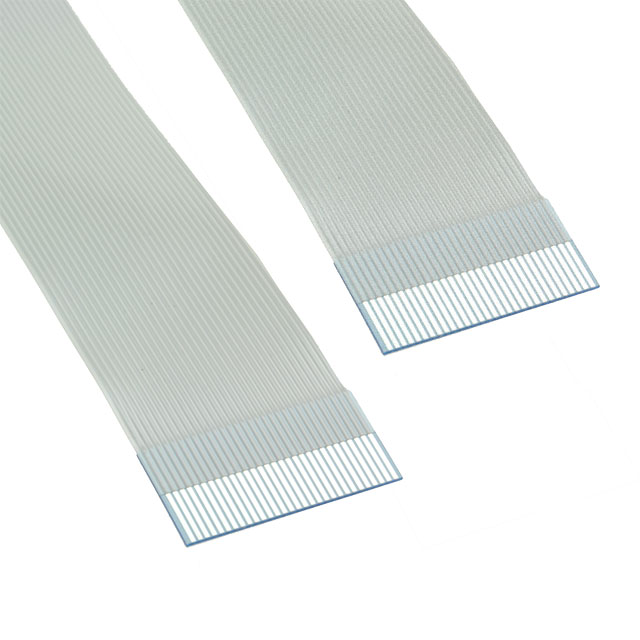

Molex 0151660331	30	0.157 in	Backers on Both Sides Top on Both Sides	228.6 mm	0.02 in	FFC FPC

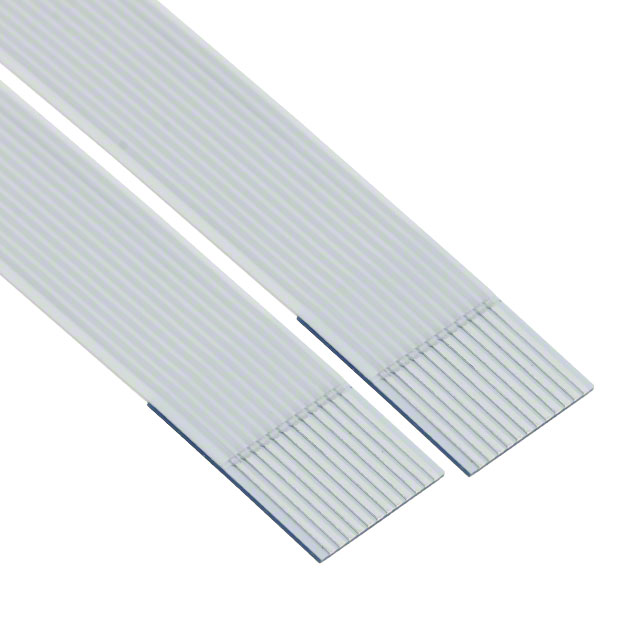

Molex 0151660195	18	0.157 in	Backers on Both Sides Top on Both Sides	7 in	0.02 in	FFC FPC
Molex 0151661015	31	0.157 in	Backers on Both Sides Top on Both Sides	4 in	0.02 in	FFC FPC
Molex 0151660285	26	0.157 in	Backers on Both Sides Top on Both Sides	8 in	0.02 in	FFC FPC
Molex 0151661099	39	0.157 in	Backers on Both Sides Top on Both Sides	2 in	0.02 in	FFC FPC
Molex 0151661116	39	0.157 in	Backers on Both Sides Bottom on Other Top on One Side	12 in	0.02 in	FFC FPC
Molex 0151660756	7	0.157 in	Backers on Both Sides Bottom on Other Top on One Side	7 in	0.02 in	FFC FPC

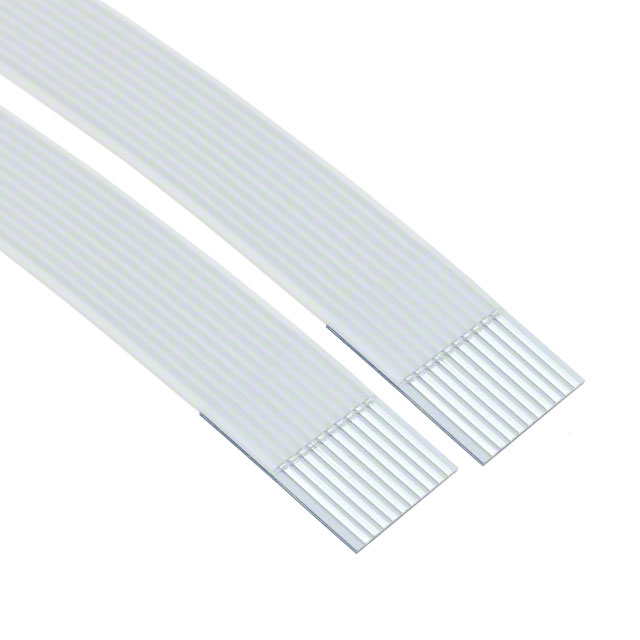

Molex 0151660096	10	0.157 in	Backers on Both Sides Bottom on Other Top on One Side	1.18 in	0.02 in	FFC FPC
Molex 0151660448
Molex 0151661022	31	0.157 in	Backers on Both Sides Bottom on Other Top on One Side	8 in	0.02 in	FFC FPC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

3D models and CAD resources for this part

General part information

35 Position FFC, FPC Cable 0.020" (0.50mm) 4.000" (101.60mm)
