FLA.00.250.CTAC29

Active

LEMO

CONN NIMCAMA PLG R/A 50OHM SOLDR

Deep-Dive with AI

Search across all available documentation for this part.

Documents00 Nim-Camac/01 Coaxial Catalog Datasheet

FLA.00.250.CTAC29

Active

LEMO

CONN NIMCAMA PLG R/A 50OHM SOLDR

Deep-Dive with AI

Documents00 Nim-Camac/01 Coaxial Catalog Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 40.75
		1	$ 34.70
		10	$ 35.69
		10	$ 33.48
		25	$ 31.29
		25	$ 34.14
		50	$ 29.36
		50	$ 33.04
		100	$ 27.66
		100	$ 31.94
		250	$ 30.18

Description

General part information

FLA.00 Series

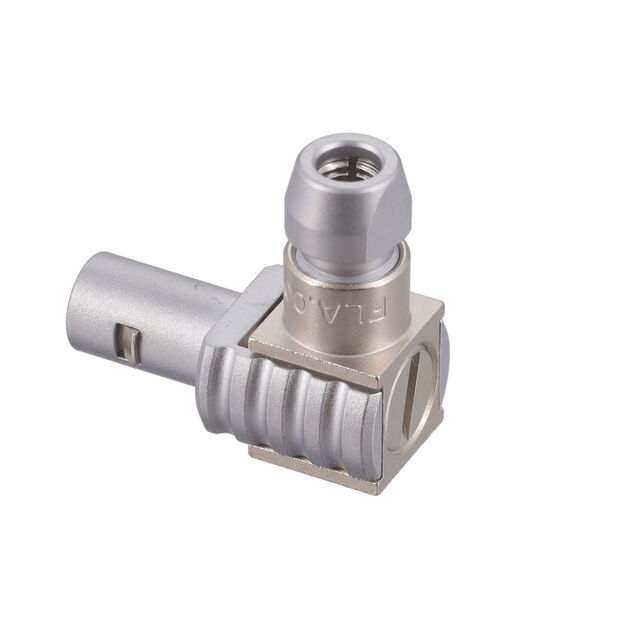

NIM-CAMAC CD/N 549 Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
