1-1337458-1

Active

TE Connectivity AMP Connectors

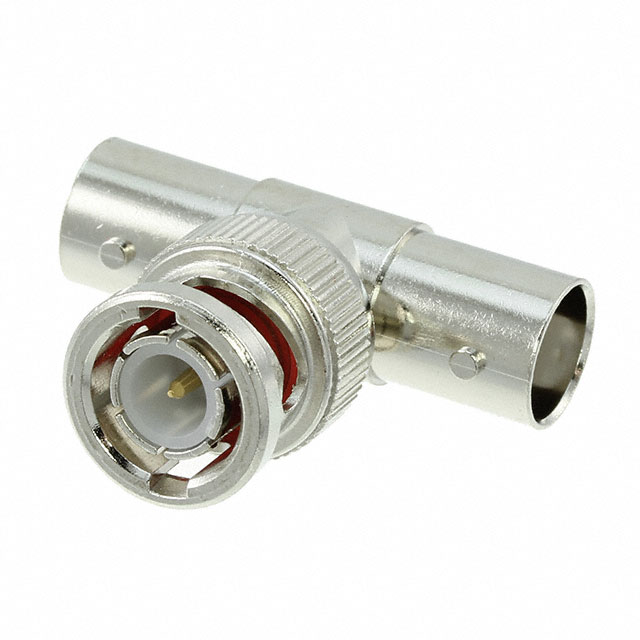

CONN ADAPT PLUG TO JACK BNC

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN ADAPT PLUG TO JACK BNC

Technical Specifications

Parameters and characteristics for this part

Specification	1-1337458-1

Adapter Series	BNC to BNC, Dual
Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Conversion Type	Same Series
Convert From (Adapter End)	BNC Plug, Male Pin
Convert To (Adapter End)	BNC Jack, Female Socket (2)
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	2 GHz
Impedance	75 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	T-Shape

CONN ADAPT PLUG TO JACK BNC

Part	Body Material	Conversion Type	Body Finish	Convert To (Adapter End)	Center Contact Plating	Convert From (Adapter End)	Style	Fastening Type	Mounting Type	Adapter Series	Frequency - Max [Max]	Impedance	Adapter Type	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Center Contact Material	Mating Cycles
TE Connectivity AMP Connectors 1-1337458-1	Brass	Same Series	Nickel	BNC Jack, Female Socket (2)	Gold	BNC Plug, Male Pin	T-Shape	Bayonet Lock	Free Hanging (In-Line)	BNC to BNC, Dual	2 GHz	75 Ohms	Plug to Jack	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Brass	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Adapter Coaxial Connector BNC Plug, Male Pin To BNC Jack, Female Socket (2) 75 Ohms
