WLBD2012HCU121TH
ActiveWalsin Technology Corporation

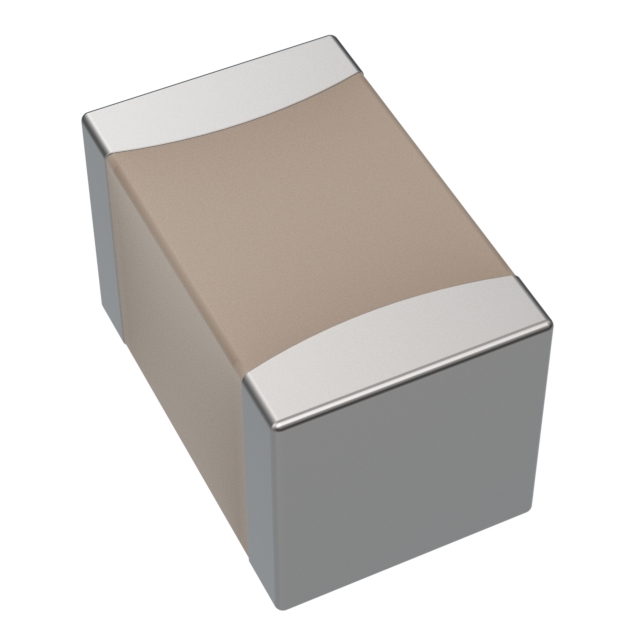

FERRITE BEAD 120 OHM 0805 1LN
WLBD2012HCU121TH
ActiveWalsin Technology Corporation
FERRITE BEAD 120 OHM 0805 1LN
Description
General part information
WLBD2012HCU121TH
120 Ohms @ 100 MHz 1 Power Line Ferrite Bead 0805 (2012 Metric) 5A 20mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | WLBD2012HCU121TH |
|---|---|
| Current Rating (Max) | 5 A |
| DC Resistance (DCR) (Max) | 20 mOhm |
| Filter Type | Power Line |
| Height (Max) | 0.049 in |
| Impedance | 120 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0805 (2012 Metric) |
| Size / Dimension Length | 0.079 in |
| Size / Dimension Width | 0.049 in |
