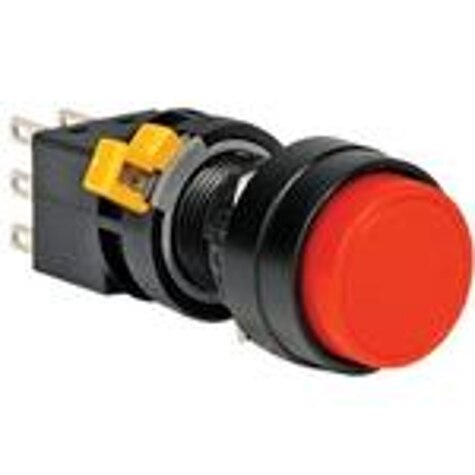

Specification	HA1B-A2C5-R

Actuator Marking	No Marking
Actuator Type	Button, Round
Circuit	SPDT
Color - Actuator/Cap	Red
Current Rating	3 A, 5 A
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP65
Mounting Type	Front, Panel Mount
Operating Temperature (Max)	55 °C
Operating Temperature (Min)	-25 °C
Panel Cutout Diameter	16.2 mm
Panel Cutout Shape	Circular
Quick Connect Size (0.110")	0.11 in
Switch Function	On-On
Termination Style	Quick Connect, Solder
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

L6 H6 Series

...

Part	Mounting Type	Quick Connect Size (0.110")	Termination Style	Panel Cutout Diameter	Panel Cutout Shape	Type	Actuator Type	Color - Actuator/Cap	Switch Function	Voltage Rating - DC	Illumination Type	Color	Current Rating	Operating Temperature (Min)	Operating Temperature (Max)	Ingress Protection IP Rating	Ingress Protection Description	Voltage Rating - AC	Illumination Voltage (Nominal)	Circuit	Actuator Marking	Mechanical Life (Cycles)	Electrical Life (Cycles)	Approval Agency	Depth Behind Flange	Number of Positions	Illumination	Requires	Compatible Series	Panel Cutout Dimension
IDEC HA1L-A1C56-S	Front Panel Mount	0.11 in	Quick Connect Solder	16.2 mm	Circular	Illuminated Standard	Button Round	Blue	On-On	30 V	Incandescent	Blue	3 A 5 A	-25 °C	55 °C	IP65	Dust Tight Water Resistant	125 V	12 V	SPDT
IDEC HA2L-M1C12V-G	Front Panel Mount		PC Pin	16.2 mm	Circular	Illuminated Standard	Button Square	Green	On-Mom	30 V	LED	Green	100 mA	-25 °C	55 °C	IP65	Dust Tight Water Resistant	125 V	6 VDC	SPDT
IDEC HA1L-A3C12V-A	Front Panel Mount		PC Pin	16.2 mm	Circular	Illuminated Standard	Button Round	Amber	On-On	30 V	LED	Amber	100 mA	-25 °C	55 °C	IP65	Dust Tight Water Resistant	125 V	6 VDC	SPDT
IDEC HA1L-M1C16V-S	Front Panel Mount		PC Pin	16.2 mm	Circular	Illuminated Standard	Button Flush Round	Blue	On-Mom	30 V	Incandescent	Blue	100 mA	-25 °C	55 °C	IP65	Dust Tight Water Resistant	125 V	12 V	SPDT	No Marking
IDEC HA1F-33C68-R
IDEC HA1F-2C13V-R	Panel Mount		PC Pin	16.2 mm	Circular	Standard			On-On	30 V	LED	Red	100 mA	-25 °C	55 °C	IP65	Dust Tight Water Resistant	125 V	12 V	SPDT		250000 Cycles	100000 Cycles	CE CSA cURus TUV	36 mm	2	Illuminated
IDEC HA1L-M1C64-R	Front Panel Mount	0.11 in	Quick Connect Solder	16.2 mm	Circular	Illuminated Standard	Button Flush Round	Red	On-Mom	30 V	LED	Red	3 A 5 A	-25 °C	55 °C	IP65	Dust Tight Water Resistant	125 V	24 V	DPDT	No Marking
IDEC HA2B-A2C2V-W
IDEC HA1L-A0					Round	Maintained	Pushbutton Round																				Non-Illuminated	Contact Block(s)	H6 IDEC	16.2 mm
IDEC HA1F-330
