969M101-10-1-050

Active

Cicoil

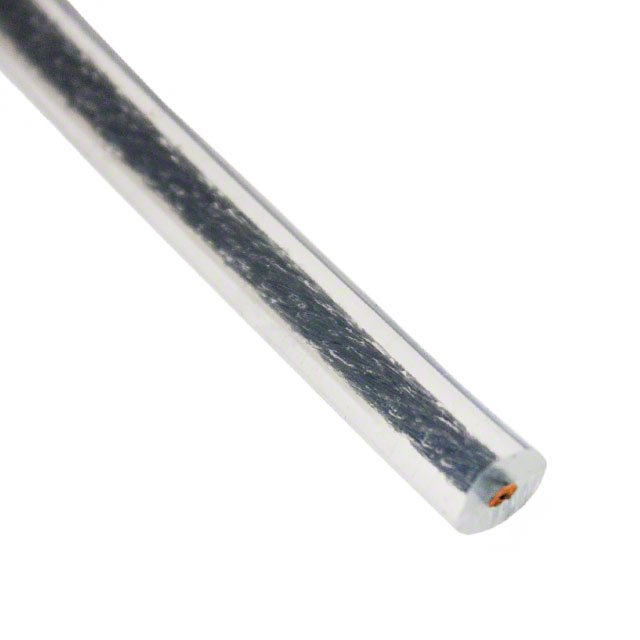

HOOK-UP 10AWG 42KV CLEAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

969M101-10-1-050

Active

Cicoil

HOOK-UP 10AWG 42KV CLEAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 7.88
		100	$ 7.47
		250	$ 7.02
		350	$ 6.92
		500	$ 6.67
		1250	$ 6.57

Description

General part information

969M101 Series

10 AWG Hook-Up Wire Clear 42kV 50.00' (15.24m)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	969M101-10-1-050	969M101 Series

Cable Type	Hook-Up	Flat Cable, Hook-Up, Multi-Pair, Multi-Conductor
Conductor Material	Copper, Tinned	Copper, Tinned
Current Rating (Amps)	-	5 - 125 A
Features	-	Hi-Flex
Insulation Resistance	-	200 MOhm
Jacket (Insulation) Diameter	-	0.44 in
Jacket (Insulation) Diameter	-	11.18 mm
Jacket (Insulation) Diameter [diameter]	0.33 in	0.12 - 0.5 in
Jacket (Insulation) Diameter [diameter]	8.38 mm	3.05 - 12.7 mm
Jacket (Insulation) Material	Flexx-Sil™	Flexx-Sil™
Jacket Color	Clear	Clear
Length	15.24 m	7.62 - 304.8 m
Length	-	25 - 6000 ft
Length	-	7.62 - 30.5 m
Length [x]	50 ft	25 - 100 ft
Number of Conductors	-	2 - 12
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Ratings	-	CE, UL E324413
Ribbon Thickness	-	0.08 - 0.47 "
Ribbon Thickness	-	0.24 - 11.94 mm
Ribbon Thickness	-	6.09 - 7.37 mm
Ribbon Width	-	1 - 44.95 mm
Ribbon Width	-	0.15 - 1.77 in
Ribbon Width	-	0.24 - 1.26 "
Ribbon Width	-	12.95 - 28.95 mm
Ribbon Width	-	0.51 - 1.14 in
Ribbon Width	-	0.13 - 1.36 in
Ribbon Width	-	3.3 - 34.54 mm
Ribbon Width	-	7.11 - 32 mm
Ribbon Width	-	25.4 mm
Ribbon Width	-	3.56 mm
Ribbon Width	-	0.14 in
Shield Coverage	-	90 %
Shield Type	-	Braid
Shielding	-	Unshielded, Shielded
Voltage	42 kV	10 - 42 kV
Wire Gauge	10 AWG	4 - 30 AWG

969M101 Series

CBL RIBN 8COND CLEAR

...

Part	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Ratings	Jacket Color	Ribbon Width	Ribbon Width	Number of Conductors	Insulation Resistance	Ribbon Thickness	Ribbon Thickness	Jacket (Insulation) Material	Conductor Material	Length	Length	Cable Type	Features	Wire Gauge	Voltage	Length [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Ribbon Width [custom]	Length [x]	Ribbon Width [x]	Ribbon Width [x]	Ribbon Width [y]	Ribbon Width [y]
Cicoil 969M101-18-8-050	20 A	-65 ░C	165 °C	Unshielded	CE, UL E324413	Clear	20.57 mm	0.81 in	8	200 MOhm	0.141 "	3.58 mm	Flexx-Sil™	Copper, Tinned	15.24 m	50 ft	Flat Cable	Hi-Flex	18 AWG
Cicoil 969M101-8-1-050		-65 ░C	165 °C			Clear							Flexx-Sil™	Copper, Tinned	15.24 m		Hook-Up		8 AWG	42 kV	50 ft	9.91 mm	0.39 in
Cicoil 969M101-18-2	20 A	-65 ░C	165 °C	Unshielded	CE, UL E324413	Clear	6.09 mm		2	200 MOhm	0.141 "	3.58 mm	Flexx-Sil™	Copper, Tinned	7.62 m, 15.24 m, 304.8 m	25 ft, 50 ft, 1000 ft	Flat Cable	Hi-Flex	18 AWG		100 ft			0.24 "	30.48 m
Cicoil 969M101-22-8-050	11 A	-65 ░C	165 °C	Unshielded	CE, UL E324413	Clear			8	200 MOhm	0.11 in	2.79 mm	Flexx-Sil™	Copper, Tinned	15.24 m	50 ft	Flat Cable	Hi-Flex	22 AWG	18 kV						14.98 mm	0.59 in
Cicoil 969M101-28-8-050	5 A	-65 ░C	165 °C	Unshielded	CE, UL E324413	Clear	10.92 mm	0.43 in	8	200 MOhm	0.08 in	2.03 mm	Flexx-Sil™	Copper, Tinned	15.24 m	50 ft	Flat Cable	Hi-Flex	28 AWG	12 kV
Cicoil 969M101-14-4-SMC-025	27 A	-65 ░C	165 °C	Shielded	CE, UL E324413	Clear	15.49 mm	0.61 "	4	200 MOhm	0.19 in	4.83 mm	Flexx-Sil™	Copper, Tinned	7.62 m	25 ft	Flat Cable	Hi-Flex	13.5 AWG
Cicoil 969M101-16-12-025	26 A	-65 ░C	165 °C	Unshielded	CE, UL E324413	Clear			12	200 MOhm	0.15 in	3.81 mm	Flexx-Sil™	Copper, Tinned	7.62 m	25 ft	Flat Cable	Hi-Flex	16 AWG									1.36 in	34.54 mm
Cicoil 969M101-10-1-025		-65 ░C	165 °C			Clear							Flexx-Sil™	Copper, Tinned			Hook-Up		10 AWG	42 kV	25 ft	8.38 mm	0.33 in		7.62 m
Cicoil 969M101-22-12-050	11 A	-65 ░C	165 °C	Unshielded	CE, UL E324413	Clear	22.1 mm	0.87 in	12	200 MOhm	0.11 in	2.79 mm	Flexx-Sil™	Copper, Tinned	15.24 m	50 ft	Flat Cable	Hi-Flex	22 AWG	18 kV
Cicoil 969M101-22-4	11 A	-65 ░C	165 °C	Unshielded	CE, UL E324413	Clear	8.13 mm	0.32 in	4	200 MOhm	0.11 in	2.79 mm	Flexx-Sil™	Copper, Tinned	304.8 m	1000 ft	Flat Cable	Hi-Flex	22 AWG	18 kV	100 ft				30.48 m
