ANT-433-WRT-SMA-300
ActiveTE Connectivity Linx
RF ANT 433MHZ DOME SMA -300
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ANT-433-WRT-SMA-300
ActiveTE Connectivity Linx
RF ANT 433MHZ DOME SMA -300
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT-433-WRT-SMA-300 |
|---|---|
| Antenna Type | Dome |
| Applications | Sensor Networks |
| Features | 300 mm |
| Features | Cable |
| Frequency (Center/Band) | 433 MHz |
| Frequency Group [Max] | 1 GHz |
| Frequency Group [Min] | 300 MHz |
| Frequency Range [Max] | 435 MHz |
| Frequency Range [Min] | 430 MHz |
| Gain | -1.8 dBi |
| Height (Max) | 27 mm |
| Height (Max) [Max] | 1.063 in |
| Number of Bands | 1 |
| Power - Max [Max] | 5 W |
| VSWR | 1.4 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1000 | $ 13.97 | |
Description
General part information
ANT-433-WRT-SMA-300

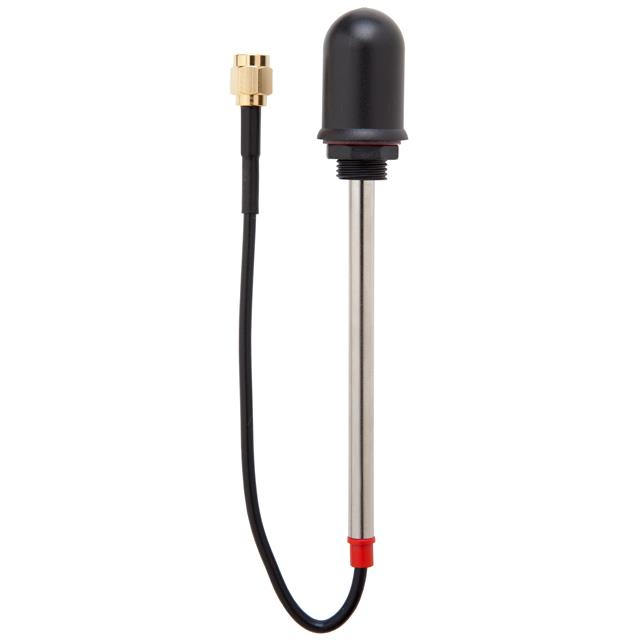

RF ANTENNA Sensor Networks Dome SMA Male Panel Mount
