1708475
ActivePhoenix Contact

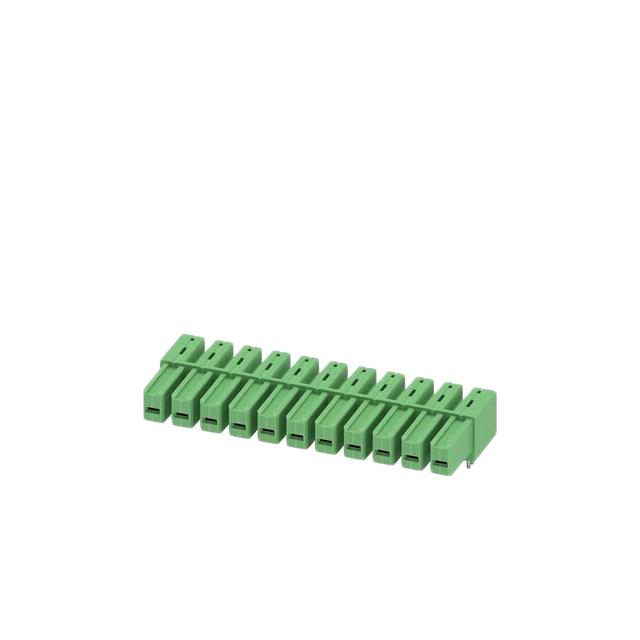

TERM BLOCK HDR 11POS 7.62MM
1708475
ActivePhoenix Contact
TERM BLOCK HDR 11POS 7.62MM
Description
General part information
1708475
11 Position Terminal Block Header, Female Sockets 0.300" (7.62mm) 90°, Right Angle Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 1708475 |
|---|---|
| Color | Green |
| Contact Mating Finish | Tin |
| Contact Tail Length | 0.197 in |
| Current - IEC | 41 A |
| Current - UL | 5 A |
| Header Orientation | Right Angle |
| Header Orientation Angle | 90 ° |
| Housing Material | Nylon, Polyamide, PA |
| Insulation Height | 0.504 in |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Number of Positions | 11 |
| Pitch | 0.3 in |
| Positions Per Level | 11 |
| Termination Style | Solder |
| Type | Header, Female Sockets |
| Voltage - IEC | 1000 V |
| Voltage - UL | 600 V |
