L722RAS

Active

Switchcraft Inc.

CONN PWR JACK 2X5.5MM SOLDER

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PWR JACK 2X5.5MM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	L722RAS

Actual Diameter	0.079 "
Actual Diameter	2 mm
Body Color	Silver, Black
Body Material	Copper Alloy
Connector Type	Jack
Contact Material	Copper Alloy
Contact Material - Plating [custom]	Silver
Current Rating (Amps)	5 A
Features	Thread Lock, Mounting Hardware
Gender	Male
Housing Material	Thermoplastic

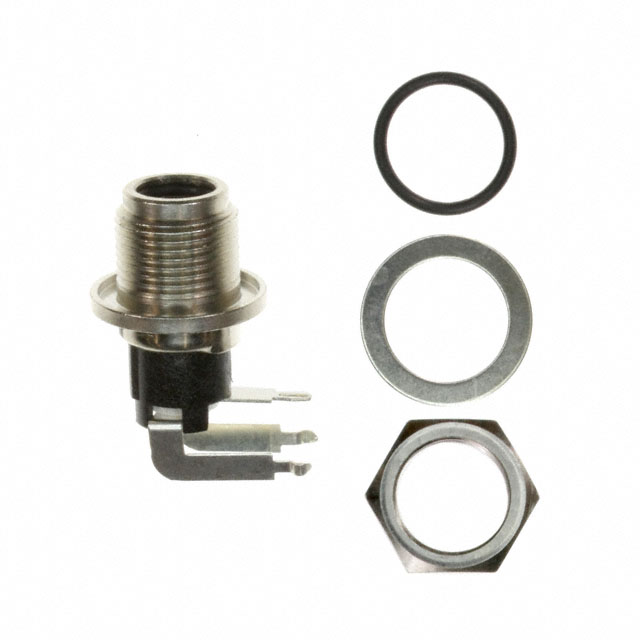

Includes	1 Washer, 1 O-Ring, 1 Nut, 1 Connector
Industry Recognized Mating Diameter [diameter]	0.079 in, 0.217 "
Industry Recognized Mating Diameter [diameter]	2 mm, 5.5 mm
Ingress Protection	IP68
Internal Switch(s)	Single Switch, Normally Closed
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions/Contacts	3 Conductors, 2 Conductors
Shielding	Unshielded
Termination	Solder
Thread Size	7/16"-32
Voltage - Rated	30 V

CONN PWR JACK 2X5.5MM SOLDER

Part	Contact Material - Plating [custom]	Shielding	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Body Color	Ingress Protection	Contact Material	Mounting Type	Features	Connector Type	Gender	Termination	Mounting Feature	Housing Material	Current Rating (Amps)	Voltage - Rated	Actual Diameter	Actual Diameter	Thread Size	Number of Positions/Contacts	Includes	Body Material	Internal Switch(s)
Switchcraft Inc. L722RAS	Silver	Unshielded	0.079 in, 0.217 "	2 mm, 5.5 mm	Black, Silver	IP68	Copper Alloy	Panel Mount, Right Angle, Through Hole	Mounting Hardware, Thread Lock	Jack	Male	Solder	Bulkhead - Front Side Nut	Thermoplastic	5 A	30 V	0.079 "	2 mm	7/16"-32	2 Conductors, 3 Conductors	1 Connector, 1 Nut, 1 O-Ring, 1 Washer	Copper Alloy	Normally Closed, Single Switch

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Barrel Connector Jack 2.00mm ID (0.079"), 5.50mm OD (0.217") Panel Mount, Through Hole, Right Angle
