CDR6D28MNNP-3R6NC
ActiveSumida America Components Inc.
FIXED IND 3.6UH 2.5A 50 MOHM SMD
CDR6D28MNNP-3R6NC
ActiveSumida America Components Inc.
FIXED IND 3.6UH 2.5A 50 MOHM SMD
Description
General part information
CDR6D28MNNP-3R6NC

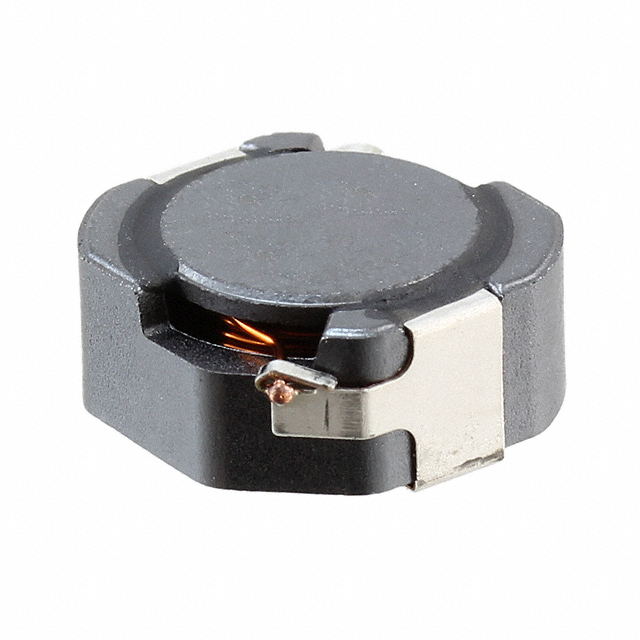

3.6 µH Shielded Inductor 2.5 A 50mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | CDR6D28MNNP-3R6NC |
|---|---|
| Current - Saturation (Isat) | 3.9 A |
| Current Rating | 2.5 A |
| DC Resistance (DCR) (Max) | 50 mOhm |
| Height - Seated (Max) | 0.118 in |
| Inductance | 3.6 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.256 in |
| Size / Dimension Width | 0.256 in |
| Tolerance | 25 % |
