VJ1808A391KBCAT4X

Active

Vishay Vitramon

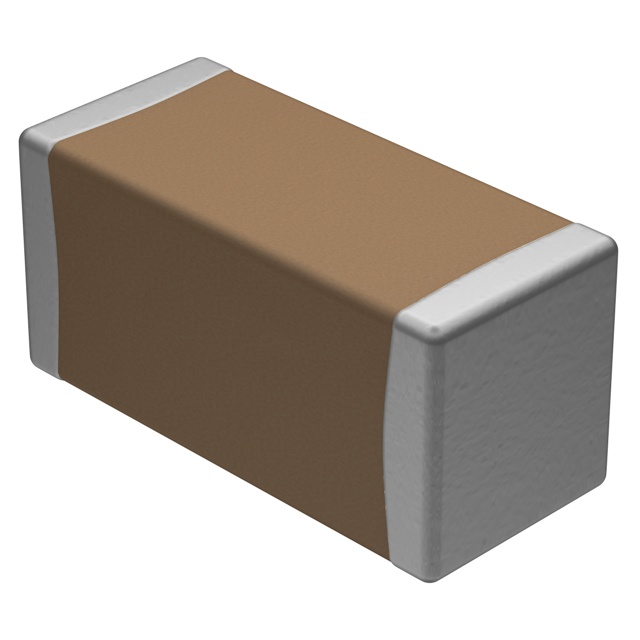

CAP CER 390PF 200V NP0 1808

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsVJ OMD Series VJ Safety Certified Caps

VJ1808A391KBCAT4X

Active

Vishay Vitramon

CAP CER 390PF 200V NP0 1808

Deep-Dive with AI

DocumentsVJ OMD Series VJ Safety Certified Caps

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VJ1808A391KBCAT4X	VJ1808 Series

Applications	SMPS Filtering, Boardflex Sensitive	SMPS Filtering, Boardflex Sensitive, General Purpose
Capacitance	390 pF	0.001 - 100000 pF
Features	Soft Termination, Open Mode	Soft Termination, Open Mode, High Voltage, Epoxy Mountable
Mounting Type	Surface Mount, MLCC	Surface Mount, MLCC, Epoxy
Operating Temperature [Max]	125 °C	125 - 150 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	1808	1808
Package / Case	4520 Metric	4520 Metric
Size / Dimension [x]	4.72 mm	4.5 - 4.72 mm
Size / Dimension [x]	0.186 in	0.177 - 0.186 in
Size / Dimension [y]	2.03 mm	2.03 mm
Size / Dimension [y]	0.08 "	0.08 "
Temperature Coefficient	NP0, C0G	NP0, C0G, X7R
Thickness (Max)	-	1.7 mm
Thickness (Max) [Max]	2.18 mm	2.18 mm
Thickness (Max) [Max]	0.086 in	0.067 - 0.086 in
Tolerance	10 %	1 - 20 %
Voltage - Rated	200 V	50 - 2000 V
Voltage - Rated	-	1 - 2 kV

VJ1808 Series

CAP CER 180PF 200V NP0 1808

...

Part	Package / Case	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Thickness (Max) [Max]	Thickness (Max) [Max]	Voltage - Rated	Mounting Type	Capacitance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Applications	Features	Temperature Coefficient	Voltage - Rated
Vishay Vitramon VJ1808A181JBCAT4X	1808	4520 Metric	-55 °C	125 °C	5 %	2.18 mm	0.086 in	200 V	MLCC, Surface Mount	180 pF	2.03 mm	4.72 mm	0.08 "	0.186 in	Boardflex Sensitive, SMPS Filtering	Open Mode, Soft Termination	C0G, NP0
Vishay Vitramon VJ1808A750KBLAT4X	1808	4520 Metric	-55 °C	125 °C	10 %	2.18 mm	0.086 in	630 V	MLCC, Surface Mount	75 pF	2.03 mm	4.72 mm	0.08 "	0.186 in	Boardflex Sensitive, SMPS Filtering	Open Mode, Soft Termination	C0G, NP0
Vishay Vitramon VJ1808Y102JBGAT4X	1808	4520 Metric	-55 °C	125 °C	5 %	2.18 mm	0.086 in	1000 V	MLCC, Surface Mount	0.001 µF	2.03 mm	4.72 mm	0.08 "	0.186 in	Boardflex Sensitive, SMPS Filtering	High Voltage, Open Mode, Soft Termination	X7R	1 kV
Vishay Vitramon VJ1808A680KBHAT4X	1808	4520 Metric	-55 °C	125 °C	10 %	2.18 mm	0.086 in		MLCC, Surface Mount	68 pF	2.03 mm	4.72 mm	0.08 "	0.186 in	Boardflex Sensitive, SMPS Filtering	High Voltage, Open Mode, Soft Termination	C0G, NP0
Vishay Vitramon VJ1808A680JBHAT4X	1808	4520 Metric	-55 °C	125 °C	5 %	2.18 mm	0.086 in		MLCC, Surface Mount	68 pF	2.03 mm	4.72 mm	0.08 "	0.186 in	Boardflex Sensitive, SMPS Filtering	High Voltage, Open Mode, Soft Termination	C0G, NP0
Vishay Vitramon VJ1808A332JXAAT	1808	4520 Metric	-55 °C	150 °C	5 %	2.18 mm	0.086 in	50 VDC	MLCC, Surface Mount	3300 pF	2.03 mm	4.57 mm	0.08 "	0.18 "	General Purpose		C0G, NP0
Vishay Vitramon VJ1808Y272JBLAT4X	1808	4520 Metric	-55 °C	125 °C	5 %	2.18 mm	0.086 in	630 V	MLCC, Surface Mount	2700 pF	2.03 mm	4.72 mm	0.08 "	0.186 in	Boardflex Sensitive, SMPS Filtering	Open Mode, Soft Termination	X7R
Vishay Vitramon VJ1808Y681KBLAT4X	1808	4520 Metric	-55 °C	125 °C	10 %	2.18 mm	0.086 in	630 V	MLCC, Surface Mount	680 pF	2.03 mm	4.72 mm	0.08 "	0.186 in	Boardflex Sensitive, SMPS Filtering	Open Mode, Soft Termination	X7R
Vishay Vitramon VJ1808A620KBLAT4X	1808	4520 Metric	-55 °C	125 °C	10 %	2.18 mm	0.086 in	630 V	MLCC, Surface Mount	62 pF	2.03 mm	4.72 mm	0.08 "	0.186 in	Boardflex Sensitive, SMPS Filtering	Open Mode, Soft Termination	C0G, NP0
Vishay Vitramon VJ1808A681JBBAT4X	1808	4520 Metric	-55 °C	125 °C	5 %	2.18 mm	0.086 in	100 V	MLCC, Surface Mount	680 pF	2.03 mm	4.72 mm	0.08 "	0.186 in	Boardflex Sensitive, SMPS Filtering	Open Mode, Soft Termination	C0G, NP0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	4000	$ 0.71

Description

General part information

VJ1808 Series

390 pF ±10% 200V Ceramic Capacitor C0G, NP0 1808 (4520 Metric)
