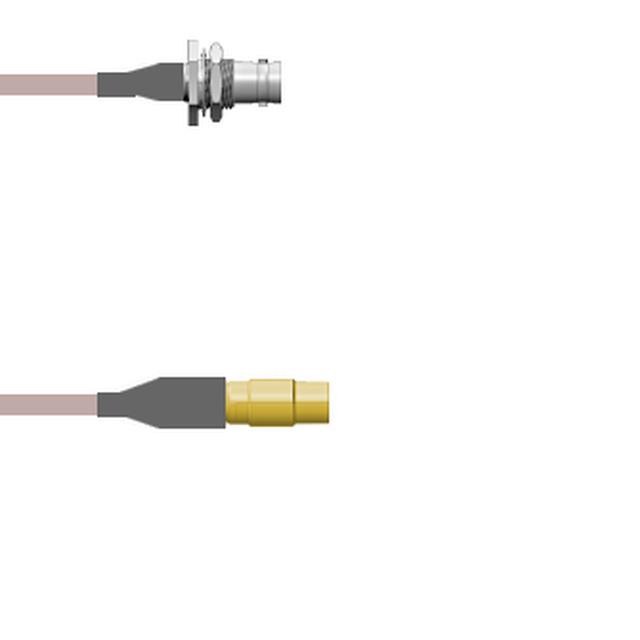

Q-0101G0001003i

Active

Amphenol Custom Cable

COAX CBL BNC TO MMCX 3"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0101G0001003i

Active

Amphenol Custom Cable

COAX CBL BNC TO MMCX 3"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	Q-0101G0001003i	Q-0101G0 Series

1st Connector	BNC Jack	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount	Panel Mount
1st Contact Gender	Female	Female
2nd Connector	MMCX Jack	MMCX Jack
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Contact Gender	Female	Female
Cable Type	RG-178	RG-178
Color	Copper	Copper
Features	Shielded	Shielded
Frequency - Max [Max]	4 GHz	4 GHz
Length	3 in	3 - 98.4 "
Length	76.2 mm	1 - 609.6 mm
Length	-	3.3 - 8.2 '
Overall Impedance	50 Ohms	50 Ohms
Style	BNC to MMCX	BNC to MMCX

Q-0101G0 Series

CBL ASSY BNC-MMCX JACK-JACK 12"

Part	1st Connector Mounting Type	Frequency - Max [Max]	Features	Cable Type	1st Contact Gender	1st Connector Mounting Feature	2nd Contact Gender	Style	Length	Length	2nd Connector Mounting Type	Color	1st Connector	Overall Impedance	2nd Connector	Length
Amphenol Custom Cable Q-0101G0001012i	Panel Mount	4 GHz	Shielded	RG-178	Female	Bulkhead - Front Side Nut	Female	BNC to MMCX	12 "	304.8 mm	Free Hanging (In-Line)	Copper	BNC Jack	50 Ohms	MMCX Jack
Amphenol Custom Cable Q-0101G0001036i	Panel Mount	4 GHz	Shielded	RG-178	Female	Bulkhead - Front Side Nut	Female	BNC to MMCX	36 in	91.44 cm	Free Hanging (In-Line)	Copper	BNC Jack	50 Ohms	MMCX Jack
Amphenol Custom Cable Q-0101G0001003i	Panel Mount	4 GHz	Shielded	RG-178	Female	Bulkhead - Front Side Nut	Female	BNC to MMCX	3 in	76.2 mm	Free Hanging (In-Line)	Copper	BNC Jack	50 Ohms	MMCX Jack
Amphenol Custom Cable Q-0101G00012.5M	Panel Mount	4 GHz	Shielded	RG-178	Female	Bulkhead - Front Side Nut	Female	BNC to MMCX	98.4 in	2.5 m	Free Hanging (In-Line)	Copper	BNC Jack	50 Ohms	MMCX Jack	8.2 '
Amphenol Custom Cable Q-0101G0001002M	Panel Mount	4 GHz	Shielded	RG-178	Female	Bulkhead - Front Side Nut	Female	BNC to MMCX	78.7 in	2 m	Free Hanging (In-Line)	Copper	BNC Jack	50 Ohms	MMCX Jack	6.6 ft
Amphenol Custom Cable Q-0101G0001084i	Panel Mount	4 GHz	Shielded	RG-178	Female	Bulkhead - Front Side Nut	Female	BNC to MMCX	84 in	2.1 m	Free Hanging (In-Line)	Copper	BNC Jack	50 Ohms	MMCX Jack	7 ft
Amphenol Custom Cable Q-0101G0001006i	Panel Mount	4 GHz	Shielded	RG-178	Female	Bulkhead - Front Side Nut	Female	BNC to MMCX	6 in	152.4 mm	Free Hanging (In-Line)	Copper	BNC Jack	50 Ohms	MMCX Jack
Amphenol Custom Cable Q-0101G0001001M	Panel Mount	4 GHz	Shielded	RG-178	Female	Bulkhead - Front Side Nut	Female	BNC to MMCX	39.4 in	1 m	Free Hanging (In-Line)	Copper	BNC Jack	50 Ohms	MMCX Jack	3.3 ft
Amphenol Custom Cable Q-0101G0001024i	Panel Mount	4 GHz	Shielded	RG-178	Female	Bulkhead - Front Side Nut	Female	BNC to MMCX	24 "	609.6 mm	Free Hanging (In-Line)	Copper	BNC Jack	50 Ohms	MMCX Jack
Amphenol Custom Cable Q-0101G0001072i	Panel Mount	4 GHz	Shielded	RG-178	Female	Bulkhead - Front Side Nut	Female	BNC to MMCX	72 in	1.8 m	Free Hanging (In-Line)	Copper	BNC Jack	50 Ohms	MMCX Jack	6 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 110.46
		25	$ 108.31
		50	$ 106.16
		100	$ 104.01
		250	$ 101.87

Description

General part information

Q-0101G0 Series

Cable Assembly Coaxial BNC to MMCX RG-178 3.000" (76.20mm)

Documents

Technical documentation and resources

No documents available
